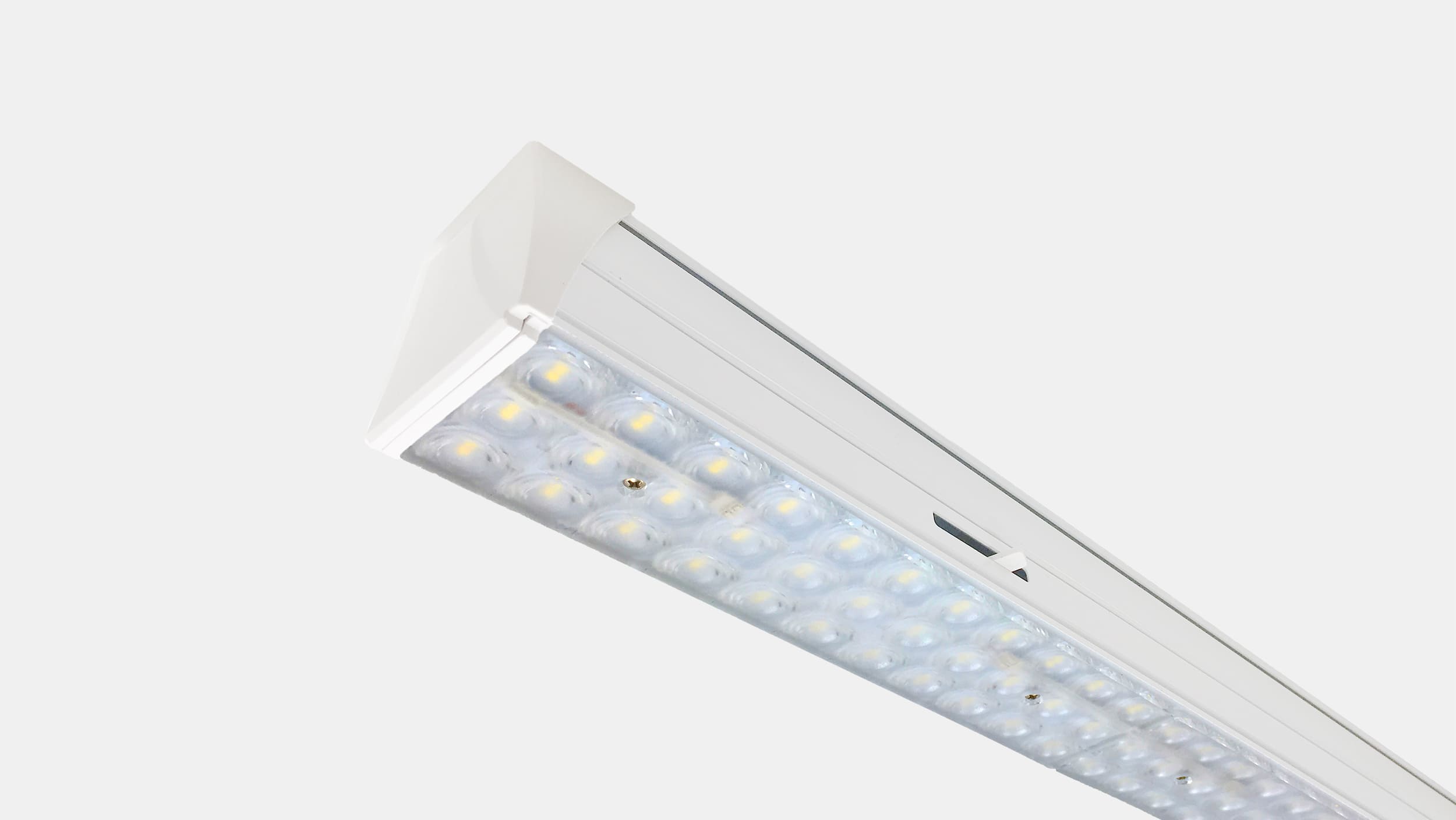

  • Line Light - 5 or 7 cables

    Line Light - 5 or 7 cables

  • Line Light - 5 or 7 cables

    Line Light - 5 or 7 cables

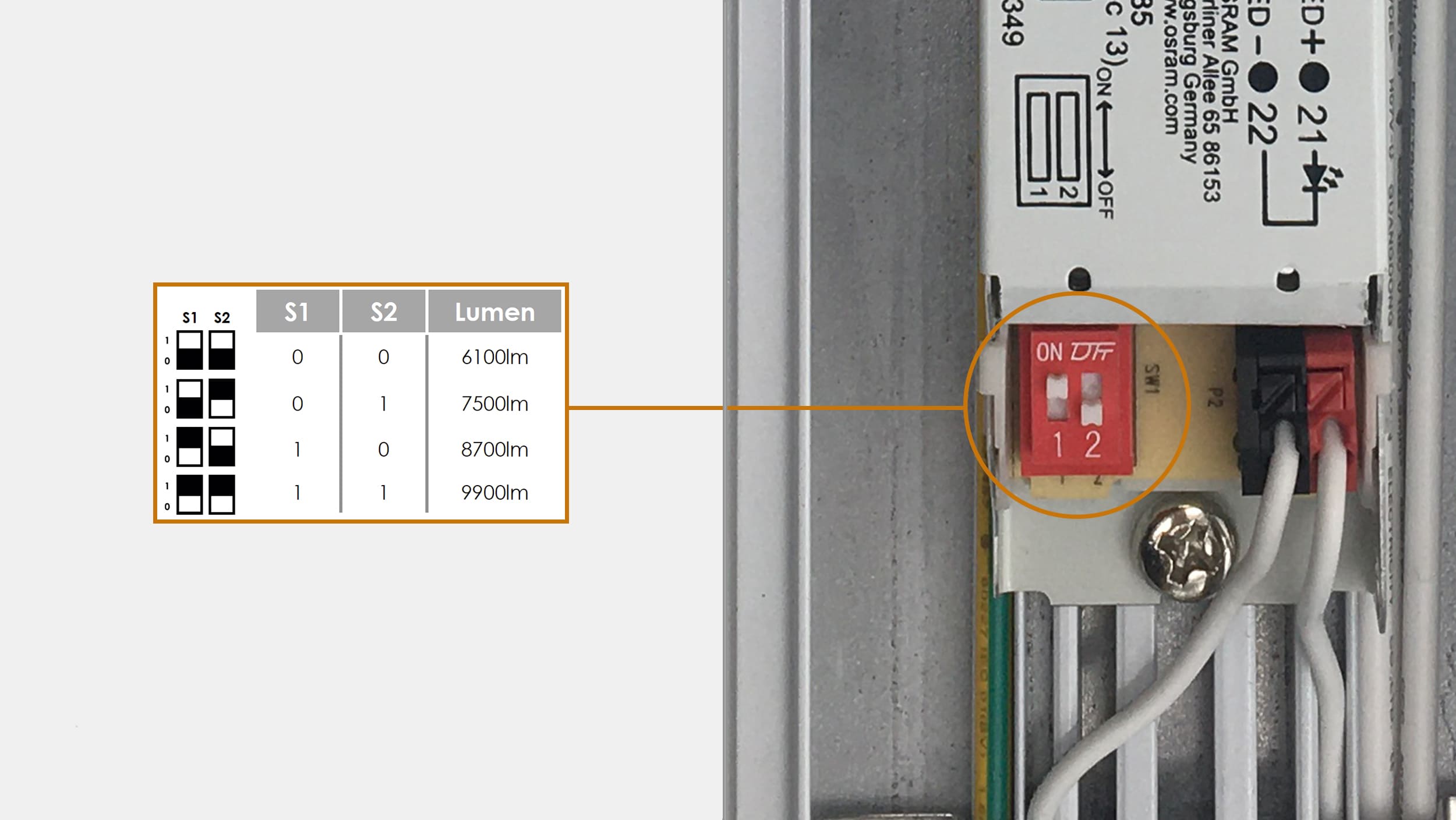

  • Intensity DIP-switch with four options between 100% and 60%

    Intensity DIP-switch with four options between 100% and 60%

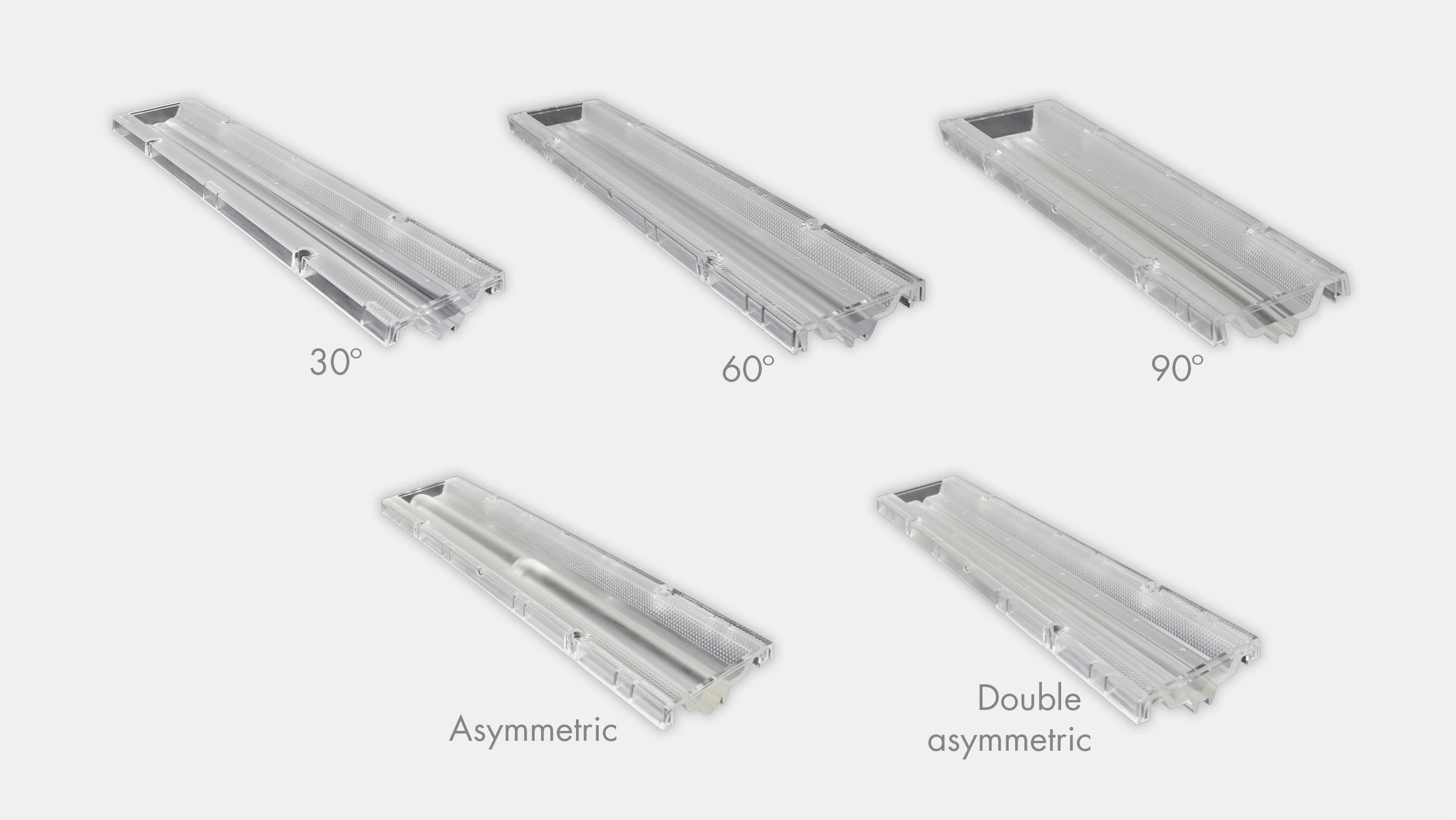

  • Lenses with 5 different beam angles

    Lenses with 5 different beam angles

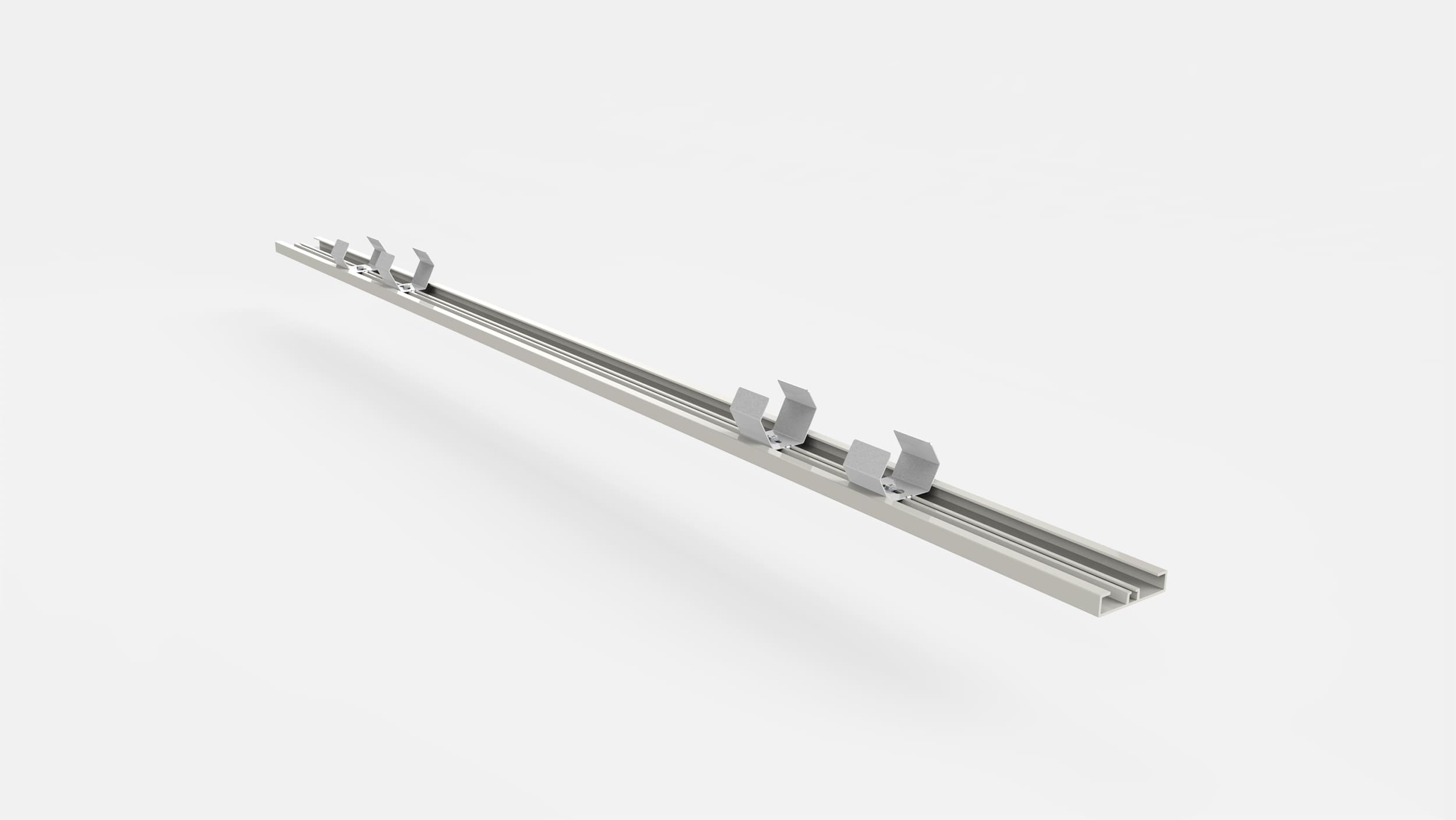

  • Blank cover 143cm

    Blank cover 143cm

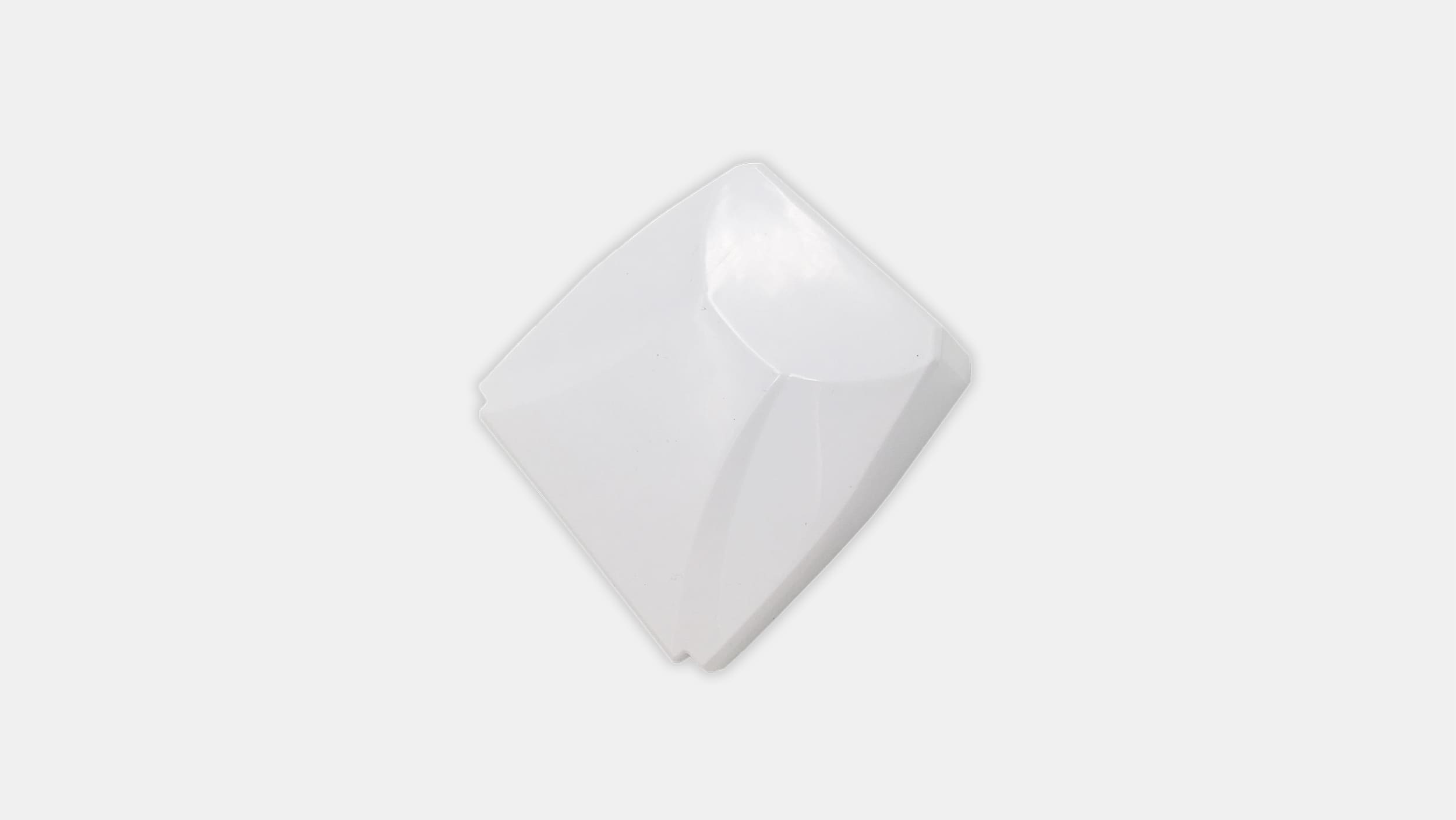

  • End line cap

    End line cap

  • Suspension kit included

    Suspension kit included

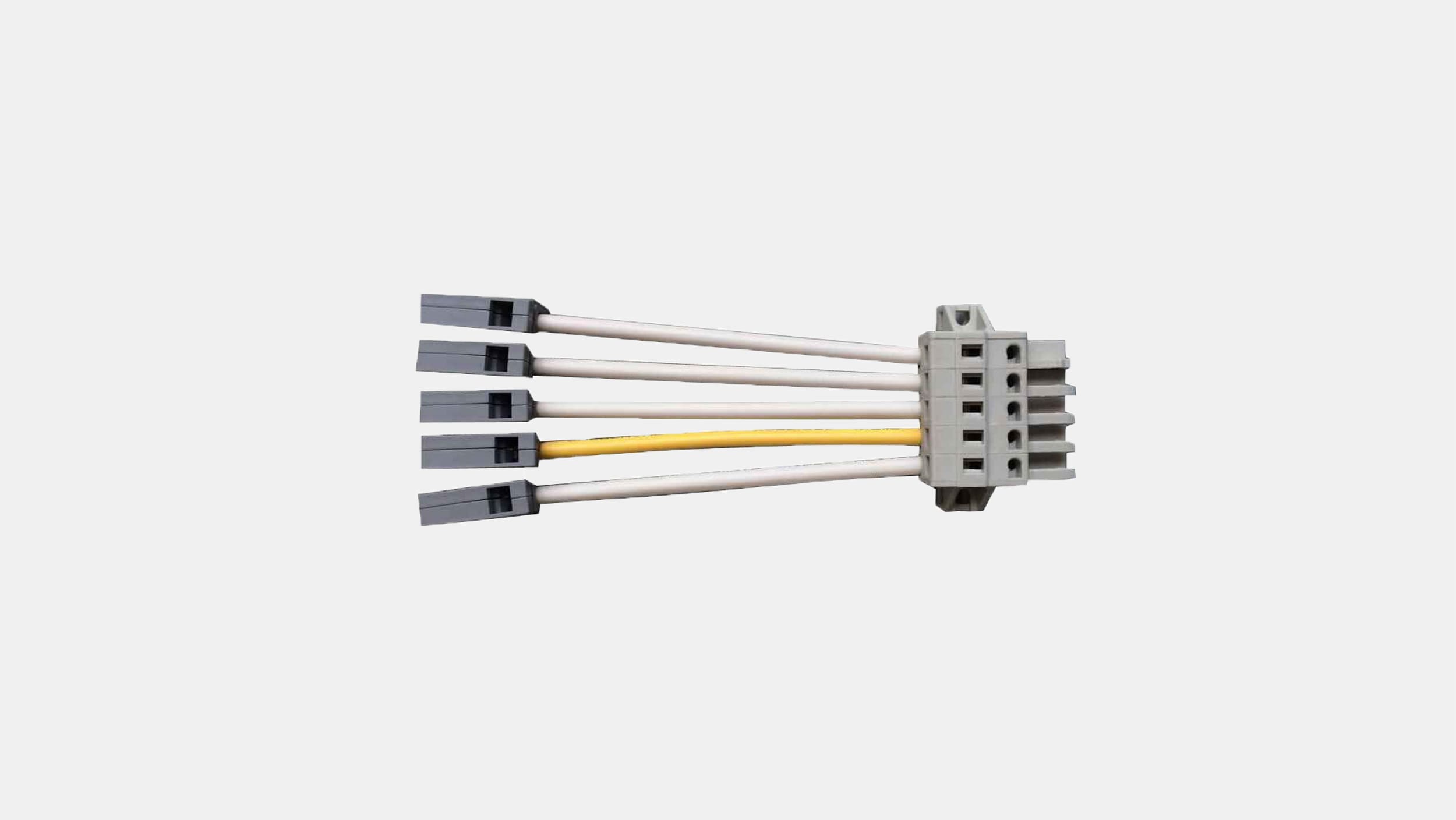

  • Line connectors

    Line connectors

Reference Version Connection Power Lumens Efficacy Dimming Working voltage CCT
LLD70CWS5 Beam angle 30º L-N (up to 25 uts) Changeable: 70 | 60 | 50 | 40W 9900 | 8700 | 7500 | 6100lm 141 | 124 | 107 | 87lm/W - 220-240v AC 5000K
LLD70NWS5 Beam angle 30º L-N (up to 25 uts) Changeable: 70 | 60 | 50 | 40W 9900 | 8700 | 7500 | 6100lm 141 | 124 | 107 | 87lm/W - 220-240v AC 4000K
LLD70CWN5 Beam angle 60º L-N (up to 25 uts) Changeable: 70 | 60 | 50 | 40W 9900 | 8700 | 7500 | 6100lm 141 | 124 | 107 | 87lm/W - 220-240v AC 5000K
LLD70NWN5 Beam angle 60º L-N (up to 25 uts) Changeable: 70 | 60 | 50 | 40W 9900 | 8700 | 7500 | 6100lm 141 | 124 | 107 | 87lm/W - 220-240v AC 4000K
LLD70CWW5 Beam angle 90º L-N (up to 25 uts) Changeable: 70 | 60 | 50 | 40W 9900 | 8700 | 7500 | 6100lm 141 | 124 | 107 | 87lm/W - 220-240v AC 5000K
LLD70NWW5 Beam angle 90º L-N (up to 25 uts) Changeable: 70 | 60 | 50 | 40W 9900 | 8700 | 7500 | 6100lm 141 | 124 | 107 | 87lm/W - 220-240v AC 4000K
LLD70CWA5 Beam angle asymmetric L-N (up to 25 uts) Changeable: 70 | 60 | 50 | 40W 9900 | 8700 | 7500 | 6100lm 141 | 124 | 107 | 87lm/W - 220-240v AC 5000K
LLD70NWA5 Beam angle asymmetric L-N (up to 25 uts) Changeable: 70 | 60 | 50 | 40W 9900 | 8700 | 7500 | 6100lm 141 | 124 | 107 | 87lm/W - 220-240v AC 4000K
LLD70CW2A5 Beam angle double asymm. L-N (up to 25 uts) Changeable: 70 | 60 | 50 | 40W 9900 | 8700 | 7500 | 6100lm 141 | 124 | 107 | 87lm/W - 220-240v AC 5000K
LLD70NW2A5 Beam angle double asymm. L-N (up to 25 uts) Changeable: 70 | 60 | 50 | 40W 9900 | 8700 | 7500 | 6100lm 141 | 124 | 107 | 87lm/W - 220-240v AC 4000K
LLD100CWS5 Beam angle 30º L-N (up to 25 uts) 100W 14000lm 140lm/W - 220-240v AC 5000K
LLD100NWS5 Beam angle 30º L-N (up to 25 uts) 100W 14000lm 140lm/W - 220-240v AC 4000K
LLD100CWN5 Beam angle 60º L-N (up to 25 uts) 100W 14000lm 140lm/W - 220-240v AC 5000K
LLD100NWN5 Beam angle 60º L-N (up to 25 uts) 100W 14000lm 140lm/W - 220-240v AC 4000K
LLD100CWW5 Beam angle 90º L-N (up to 25 uts) 100W 14000lm 140lm/W - 220-240v AC 5000K
LLD100NWW5 Beam angle 90º L-N (up to 25 uts) 100W 14000lm 140lm/W - 220-240v AC 4000K
LLD100CWA5 Beam angle asymmetric L-N (up to 25 uts) 100W 14000lm 140lm/W - 220-240v AC 5000K
LLD100NWA5 Beam angle asymmetric L-N (up to 25 uts) 100W 14000lm 140lm/W - 220-240v AC 4000K
LLD100CW2A5 Beam angle double asymm. L-N (up to 25 uts) 100W 14000lm 140lm/W - 220-240v AC 5000K
LLD100NW2A5 Beam angle double asymm. L-N (up to 25 uts) 100W 14000lm 140lm/W - 220-240v AC 4000K
  • Description
  • Developed to replace the old lines of luminaires with tubes.

  • Version with 5 cables is On/Off.

  • Luminous flux DIP-switch allows to select the lumen output between 100% and 60%.

  • Lenses with 5 different beam angles.

  • Very easy installation: hang the rail, choose the desired lumen output, connect the luminaire and fit it into the rail.


  • Features
  • LED type: SAMSUNG SPMWH12228

  • Lifespan (L70B10): >189000 hours

  • Colour Rendering Index (CRI): >80

  • Power factor: >0,9

  • IP protection rate: 20

  • Working temperature: -25º∼+35ºC

  • Certificates: CE

  • Class C lightsource

  • Guarantee: 5 years

Reference Spec sheet Manual IES File LDT File
LLD70CWS5
LLD70NWS5
LLD70CWN5
LLD70NWN5
LLD70CWW5
LLD70NWW5
LLD70CWA5
LLD70NWA5
LLD70CW2A5
LLD70NW2A5
LLD100CWS5
LLD100NWS5
LLD100CWN5
LLD100NWN5
LLD100CWW5
LLD100NWW5
LLD100CWA5
LLD100NWA5
LLD100CW2A5
LLD100NW2A5
  • Offices

  • Large commercial areas

  • Warehouses

  • Classrooms

  • Meeting rooms

Reference Version Connection Power Lumens Efficacy Dimming Working voltage CCT
LLD70CWS7 Beam angle 30º L-N (up to 25 uts) Changeable: 70 | 60 | 50 | 40W 9900 | 8700 | 7500 | 6100lm 141 | 124 | 107 | 87lm/W DALI or Emergency 220-240v AC 5000K
LLD70NWS7 Beam angle 30º L-N (up to 25 uts) Changeable: 70 | 60 | 50 | 40W 9900 | 8700 | 7500 | 6100lm 141 | 124 | 107 | 87lm/W DALI or Emergency 220-240v AC 4000K
LLD70CWN7 Beam angle 60º L-N (up to 25 uts) Changeable: 70 | 60 | 50 | 40W 9900 | 8700 | 7500 | 6100lm 141 | 124 | 107 | 87lm/W DALI or Emergency 220-240v AC 5000K
LLD70NWN7 Beam angle 60º L-N (up to 25 uts) Changeable: 70 | 60 | 50 | 40W 9900 | 8700 | 7500 | 6100lm 141 | 124 | 107 | 87lm/W DALI or Emergency 220-240v AC 4000K
LLD70CWW7 Beam angle 90º L-N (up to 25 uts) Changeable: 70 | 60 | 50 | 40W 9900 | 8700 | 7500 | 6100lm 141 | 124 | 107 | 87lm/W DALI or Emergency 220-240v AC 5000K
LLD70NWW7 Beam angle 90º L-N (up to 25 uts) Changeable: 70 | 60 | 50 | 40W 9900 | 8700 | 7500 | 6100lm 141 | 124 | 107 | 87lm/W DALI or Emergency 220-240v AC 4000K
LLD70CWA7 Beam angle asymmetric L-N (up to 25 uts) Changeable: 70 | 60 | 50 | 40W 9900 | 8700 | 7500 | 6100lm 141 | 124 | 107 | 87lm/W DALI or Emergency 220-240v AC 5000K
LLD70NWA7 Beam angle asymmetric L-N (up to 25 uts) Changeable: 70 | 60 | 50 | 40W 9900 | 8700 | 7500 | 6100lm 141 | 124 | 107 | 87lm/W DALI or Emergency 220-240v AC 4000K
LLD70CW2A7 Beam angle double asymm. L-N (up to 25 uts) Changeable: 70 | 60 | 50 | 40W 9900 | 8700 | 7500 | 6100lm 141 | 124 | 107 | 87lm/W DALI or Emergency 220-240v AC 5000K
LLD70NW2A7 Beam angle double asymm. L-N (up to 25 uts) Changeable: 70 | 60 | 50 | 40W 9900 | 8700 | 7500 | 6100lm 141 | 124 | 107 | 87lm/W DALI or Emergency 220-240v AC 4000K
LLD100CWS7 Beam angle 30º L-N (up to 25 uts) 100W 14000lm 140lm/W DALI or Emergency 220-240v AC 5000K
LLD100NWS7 Beam angle 30º L-N (up to 25 uts) 100W 14000lm 140lm/W DALI or Emergency 220-240v AC 4000K
LLD100CWN7 Beam angle 60º L-N (up to 25 uts) 100W 14000lm 140lm/W DALI or Emergency 220-240v AC 5000K
LLD100NWN7 Beam angle 60º L-N (up to 25 uts) 100W 14000lm 1410lm/W DALI or Emergency 220-240v AC 4000K
LLD100CWW7 Beam angle 90º L-N (up to 25 uts) 100W 14000lm 1410lm/W DALI or Emergency 220-240v AC 5000K
LLD100NWW7 Beam angle 90º L-N (up to 25 uts) 100W 14000lm 140lm/W DALI or Emergency 220-240v AC 4000K
LLD100CWA7 Beam angle asymmetric L-N (up to 25 uts) 100W 14000lm 140lm/W DALI or Emergency 220-240v AC 5000K
LLD100NWA7 Beam angle asymmetric L-N (up to 25 uts) 100W 1400lm 140lm/W DALI or Emergency 220-240v AC 4000K
LLD100CW2A7 Beam angle double asymm. L-N (up to 25 uts) 100W 14000lm 140lm/W DALI or Emergency 220-240v AC 5000K
LLD100NW2A7 Beam angle double asymm. L-N (up to 25 uts) 100W 14000lm 140lm/W DALI or Emergency 220-240v AC 4000K
  • Description
  • Developed to replace the old lines of luminaires with tubes.

  • Version with 7 cables has two options: DALI or emergency function.

  • Luminous flux DIP-switch allows to select the lumen output between 100% and 60%.

  • Lenses with 5 different beam angles.

  • Very easy installation: hang the rail, choose the desired lumen output, connect the luminaire and fit it into the rail.


  • Features
  • LED type: SAMSUNG SPMWH12228

  • Lifespan (L70B10): >189000 hours

  • Colour Rendering Index (CRI): >80

  • Power factor: >0,9

  • IP protection rate: 20

  • Working temperature: -25º∼+35ºC

  • Certificates: CE

  • Class C lightsource

  • Guarantee: 5 years

Reference Spec sheet Manual IES File LDT File
LLD70CWS7
LLD70NWS7
LLD70CWN7
LLD70NWN7
LLD70CWW7
LLD70NWW7
LLD70CWA7
LLD70NWA7
LLD70CW2A7
LLD70NW2A7
LLD100CWS7
LLD100NWS7
LLD100CWN7
LLD100NWN7
LLD100CWW7
LLD100NWW7
LLD100CWA7
LLD100NWA7
LLD100CW2A7
LLD100NW2A7
  • Offices

  • Large commercial areas

  • Warehouses

  • Classrooms

  • Meeting rooms

Reference Description Spec sheet
LLDRAIL5 5 cables rail
LLDRAIL7 7 cables rail
LLDCOVER Blank cover
LLD30L Lens for 30º luminaire
LLD60L Lens for 60º luminaire
LLD90L Lens for 90º luminaire
LLDAL Lens for asymmetric luminaire
LLD2AL Lens for double asymmetric luminaire
LLDF5 5 cables line connector
LLDF7 7 cables line connector
LLDEC End line cap
