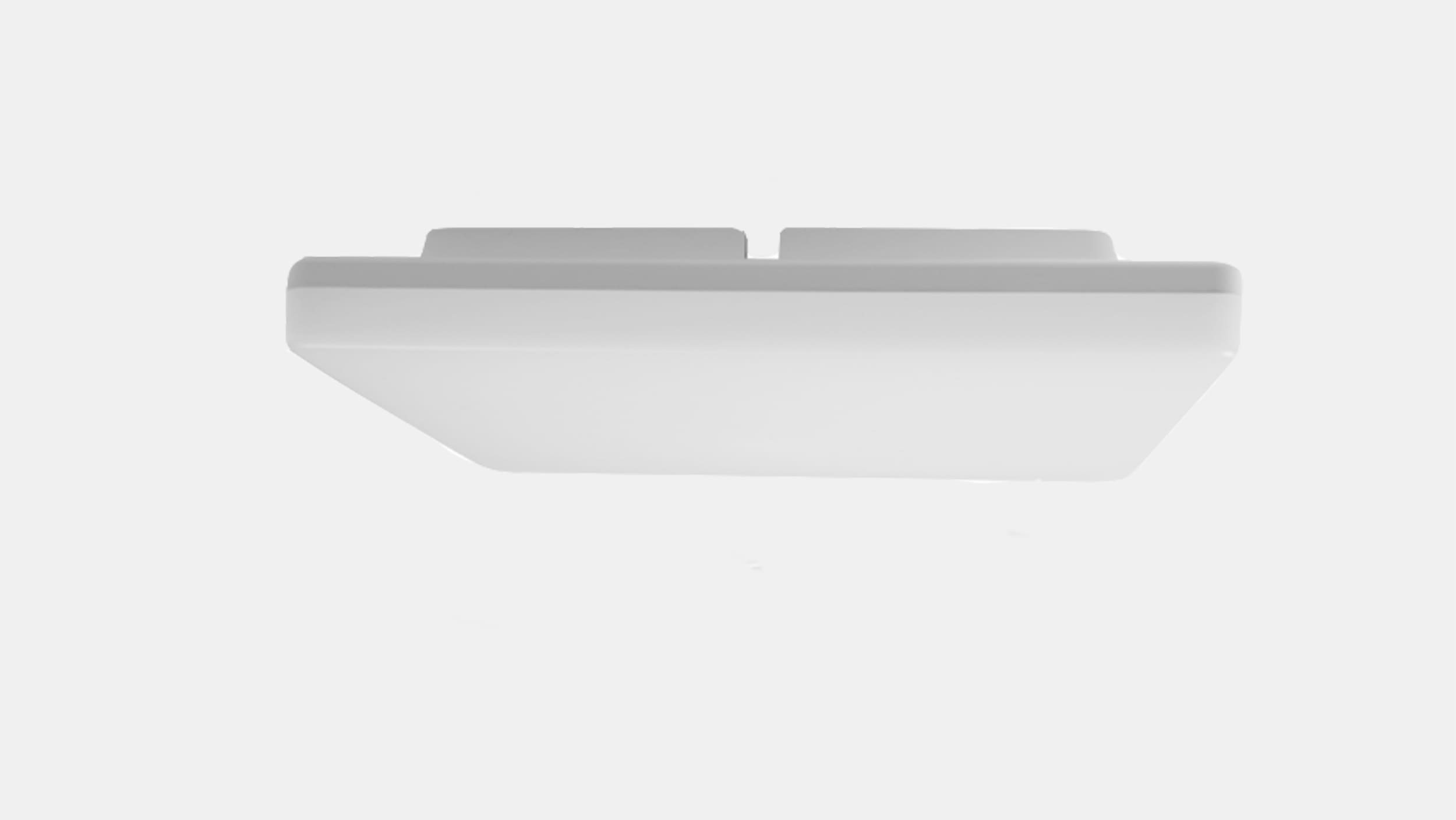

  • IP65 Luminaire with motion sensor

    IP65 Luminaire with motion sensor

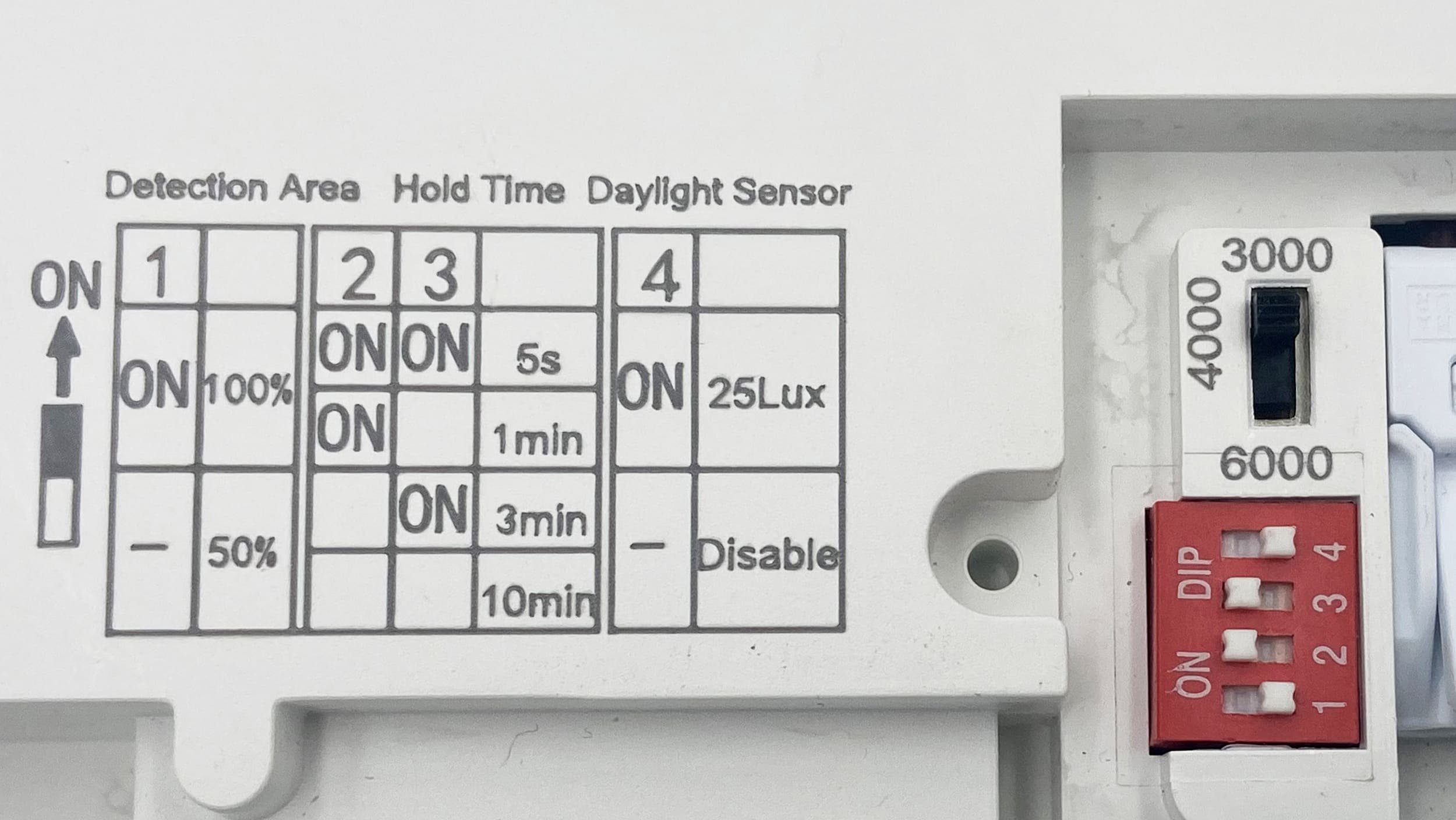

  • Luminaire - Inside view

    Luminaire - Inside view

Reference Power Equivalent Lumens Efficacy Working voltage Beam angle CCT CRI IP Spec sheet IES
SL12CWSD 12W Conventional 60W 950 79lm/W 220-240v AC 120º 5000K >80 65
SL12NWSD 12W Conventional 60W 950 79lm/W 220-240v AC 120º 4000K >80 65
SL12WWSD 12W Conventional 60W 850 71lm/W 220-240v AC 120º 3000K >80 65
  • Description
  • This surface luminaire with IP65 and motion sensor it is perfect for corridors, entrances and also outside.

  • Motion sensor turns the light on only if movement is detected.


  • Features
  • LED type: EPISTAR 2835

  • Lifespan (L70B10): >50000 hours

  • Power factor: >0,9

  • Working temperature: -20º∼+45ºC

  • Certificates: CE

  • Energy efficiency label: A+

  • Guarantee: 3 years

  • Rooms

  • Corridors

  • Hallways

  • Entrances

Detection range 2m | 4m | 6m | 8m (When installing two or more luminaires with sensor together, it is required to keep 4 meters one from another)
Time setting 10s | 2min | 6min | 12min (Any movement detected before this time elapse will re-start the timer)
Daylight sensor 5lux | 50lux | 150lux | 2000lux
Mounting height 1,5-3m (Wall installation)
