  • High mast Flood light 480W

    High mast Flood light 480W

  • High mast Flood light 800W

    High mast Flood light 800W

  • High mast Flood light 1200W

    High mast Flood light 1200W

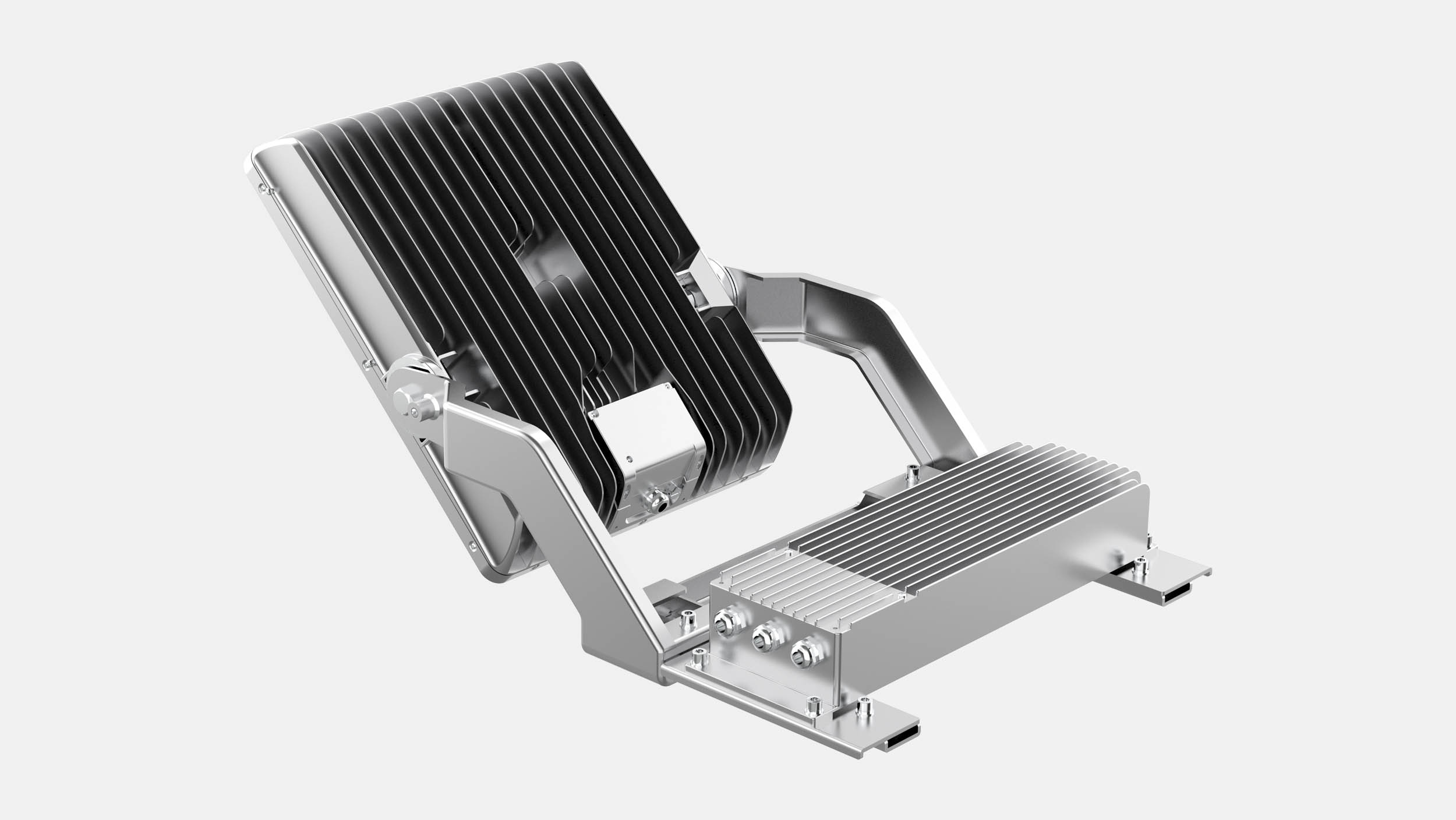

  • Back cover with hydraulic system

    Back cover with hydraulic system to power supplies accesoring

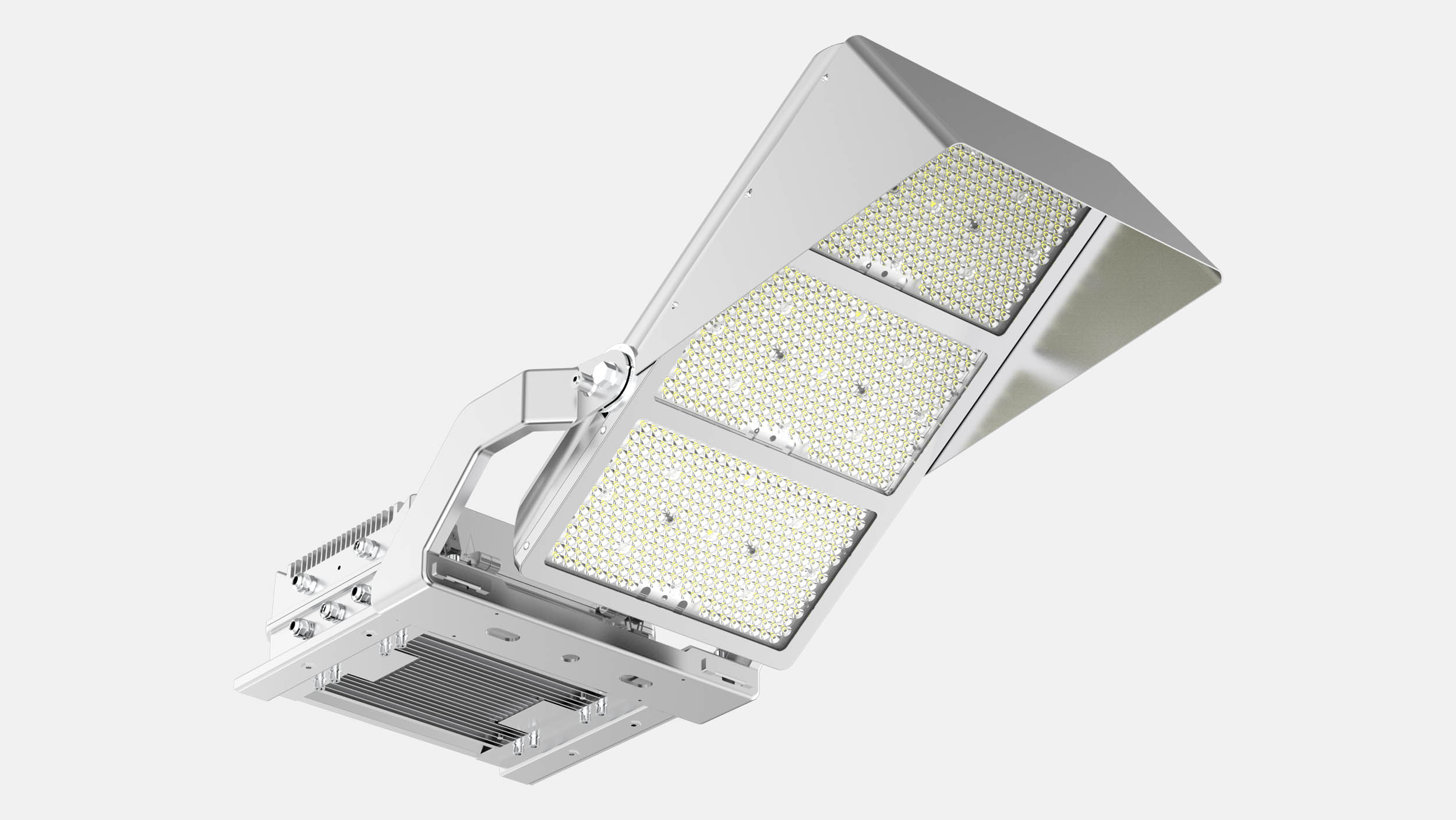

  • Airbreath LED module

    Airbreath LED module

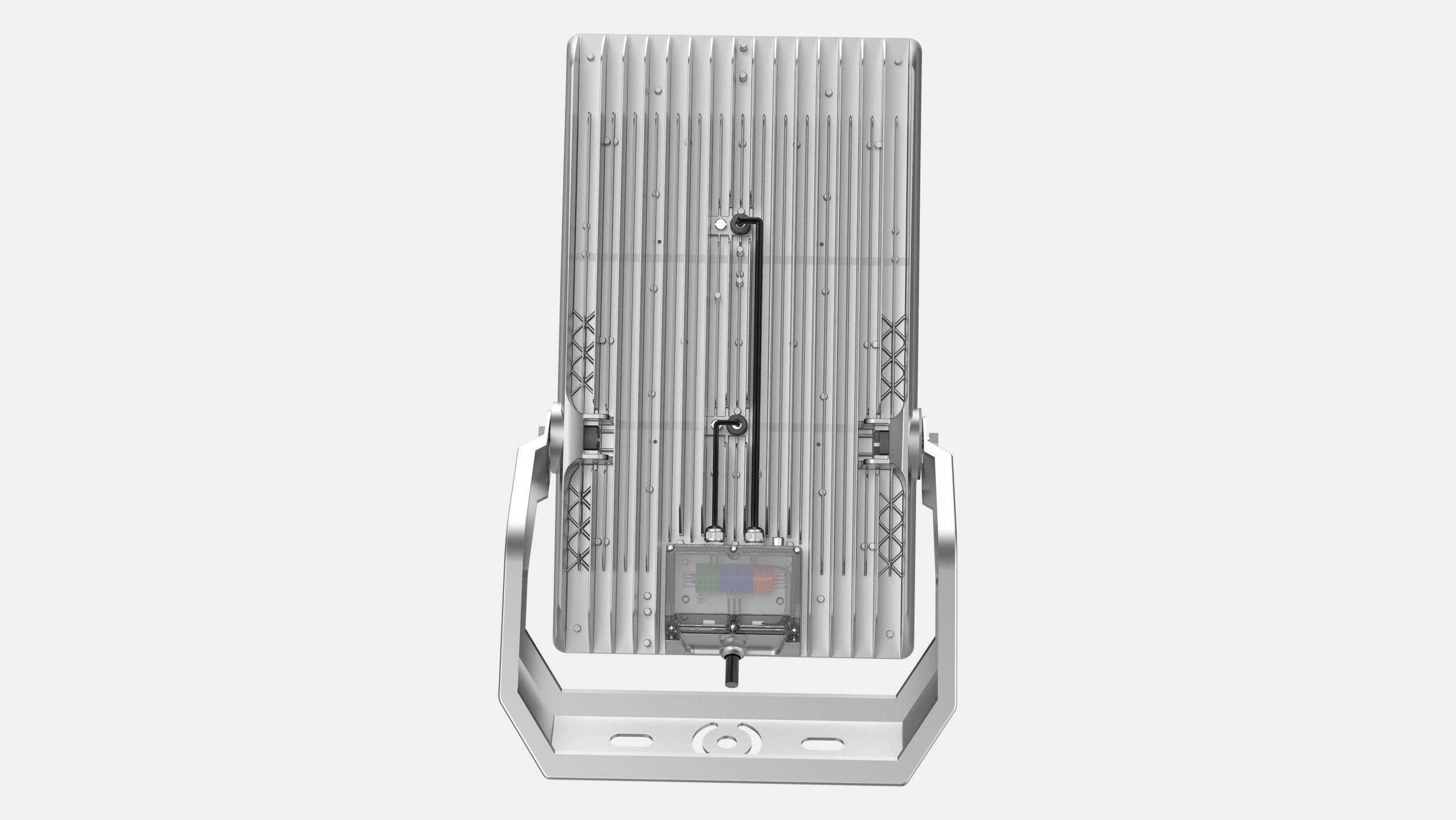

  • Mechanical aiming device

    Mechanical aiming device

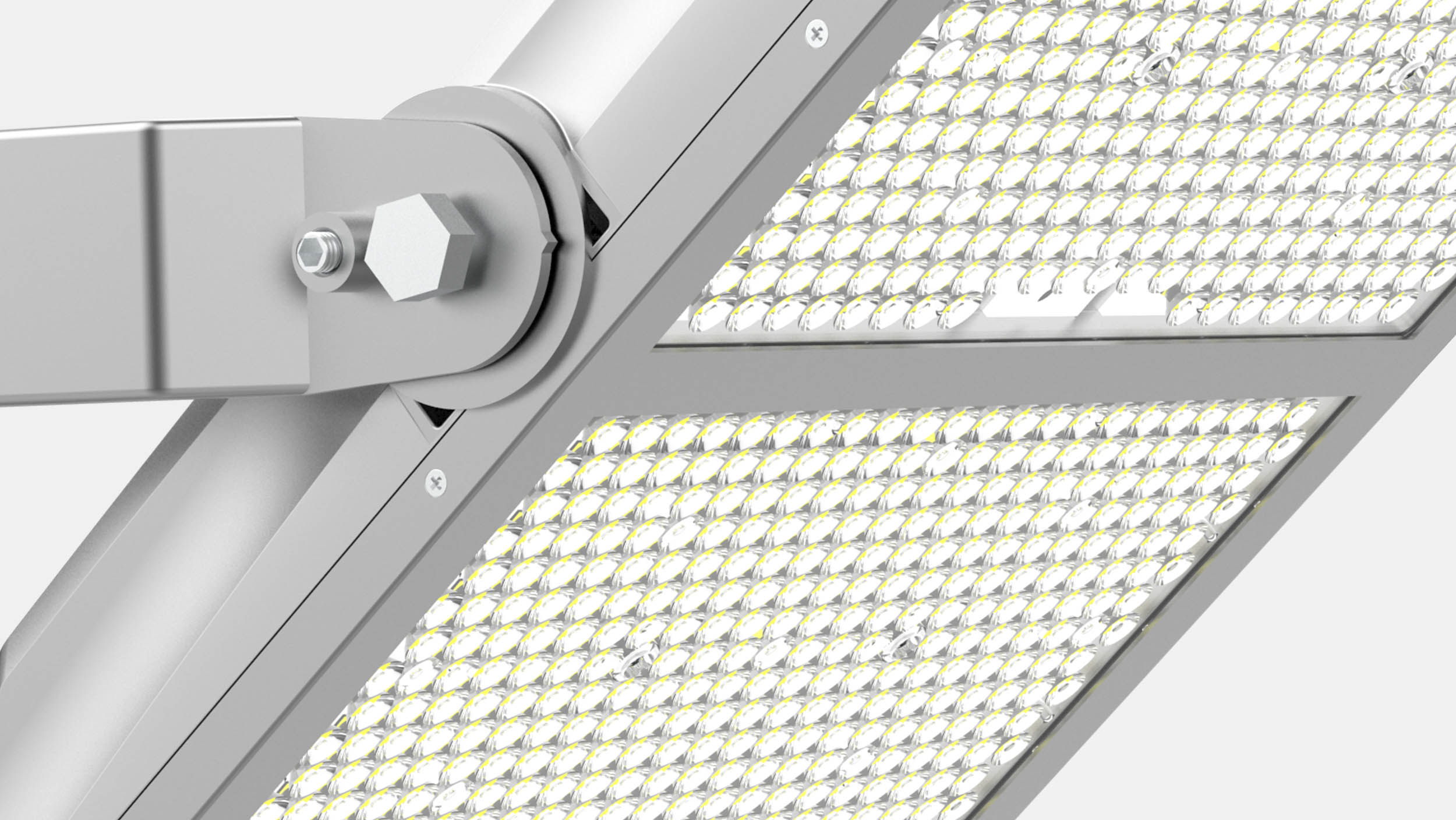

  • Tool-free adjustable angle

    Tool-free adjustable angle

  • Hand-held luminaire

    Hand-held luminaire

Reference Version Connection Power Lumens Efficacy Working voltage Beam angle CCT IP
FLM800FW 2 LED modules L-N-PE 800W 113000 141lm/W 100-277v AC 30º 5700K 66
FLM1000FW 2 LED modules L-N-PE 1000W 136000 136lm/W 100-277v AC 30º 5700K 66
FLM1200FW 2 LED modules L-N-PE 1200W 152000 126lm/W 100-277v AC 30º 5700K 66
FLM1500FW 3 LED modules L-N-PE 1500W 225000 150lm/W 100-277v AC 30º 5700K 66
  • Description
  • High mast flood lights have been designed to be installed many meters above the ground.

  • These luminaires provide high levels of luminosity and more narrow beam angles to focus the light and avoid scattering.

  • Installation that saves time and work thanks to the assembly withut tools and the exclusive design of the separate power supplies' compartment.

  • Anti-corrosion coating surface and IP66 design.

  • Reliable and high efficiency Meanwell drivers.


  • Features
  • LED type: NICHIA NF2W757GR

  • Lifespan (L70B10): >163000 hours

  • Colour Rendering Index (CRI): >70

  • Power factor: >0,9

  • IK protection rate: 08

  • Working temperature: -40º∼+50ºC

  • Certificates: CE; DLC, SAA

  • Guarantee: 5 years

Reference Spec sheet Manual IES File LDT File
FLM800FW
FLM1000FW
FLM1200FW
FLM1500FW
  • Football fields

  • Sport courts

  • Stadiums

  • Docks and container terminals

  • Transit hubs

  • Airport aprons
