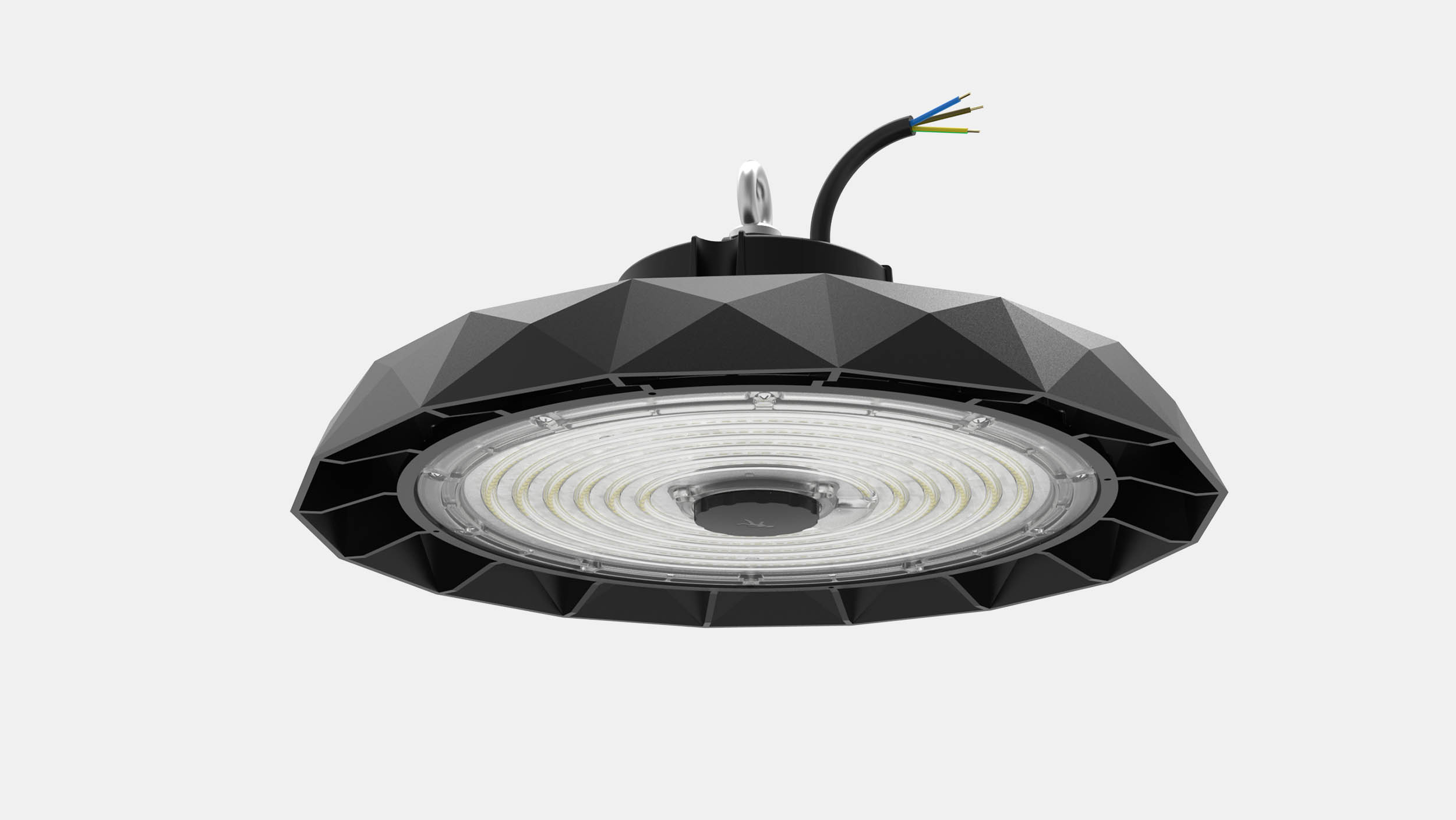

  • Standard High bay

    Standard High bay

  • Optional version with motion sensor

    Optional version with motion sensor

  • Annular lens diffuser

    Annular lens diffuser

  • Standard High bay

    Standard High bay

  • Side view Standard High bay

    Side view Standard High bay

Reference Version Dimming Power Equivalent Lumens Efficacy Working voltage Beam angle CCT IP
HBG100CWD Optical lens 1-10V 100W 200W 15000 150lm/W 220-240AC 90º(optional 60 and 120) 5000K 65
HBG150CWD Optical lens 1-10V 150W 400W 22000 147lm/W 220-240AC 90º(optional 60 and 120) 5000K 65
HBG200CWD Optical lens 1-10V 200W 400W 30000 150lm/W 220-240AC 90º(optional 60 and 120) 5000K 65
HBG240CWD Optical lens 1-10V 240W 500W 36000 150lm/W 220-240AC 90º(optional 60 and 120) 5000K 65

  • Description

  • Industrial luminaires for damp environments, where protection IP65 against gases, vapors and dust is a must.

  • Its optical system is composed of high-purity spun and anodized aluminum.

  • More than 140 lumen per Watt -ultra high light efficiency and Meanwell driver.

  • Unique patented sunflower heat sink for better thermal dissipation.

  • Hook for suspension mounting supplied with the luminaire.


  • Features

  • LED type: SEOUL SAW7C22B-NZ

  • Lifespan (L70B10): >50000 hours

  • Colour Rendering Index (CRI): >70

  • Power factor: >0,9

  • IK protection rate: 08

  • Working temperature: -40º∼+50ºC

  • Certificates: CE, DLC, ETL

  • Energy efficiency label: A+

  • Guarantee: 5 years

Reference Spec sheet Manual IES File LDT File
HBG100CWD
HBG150CWD
HBG200CWD
HBG240CWD

  • Warehouses

  • Factories

  • Sport centers
