  • Luminaire with motion sensor ∅28cm

    Luminaire with motion sensor ∅28cm

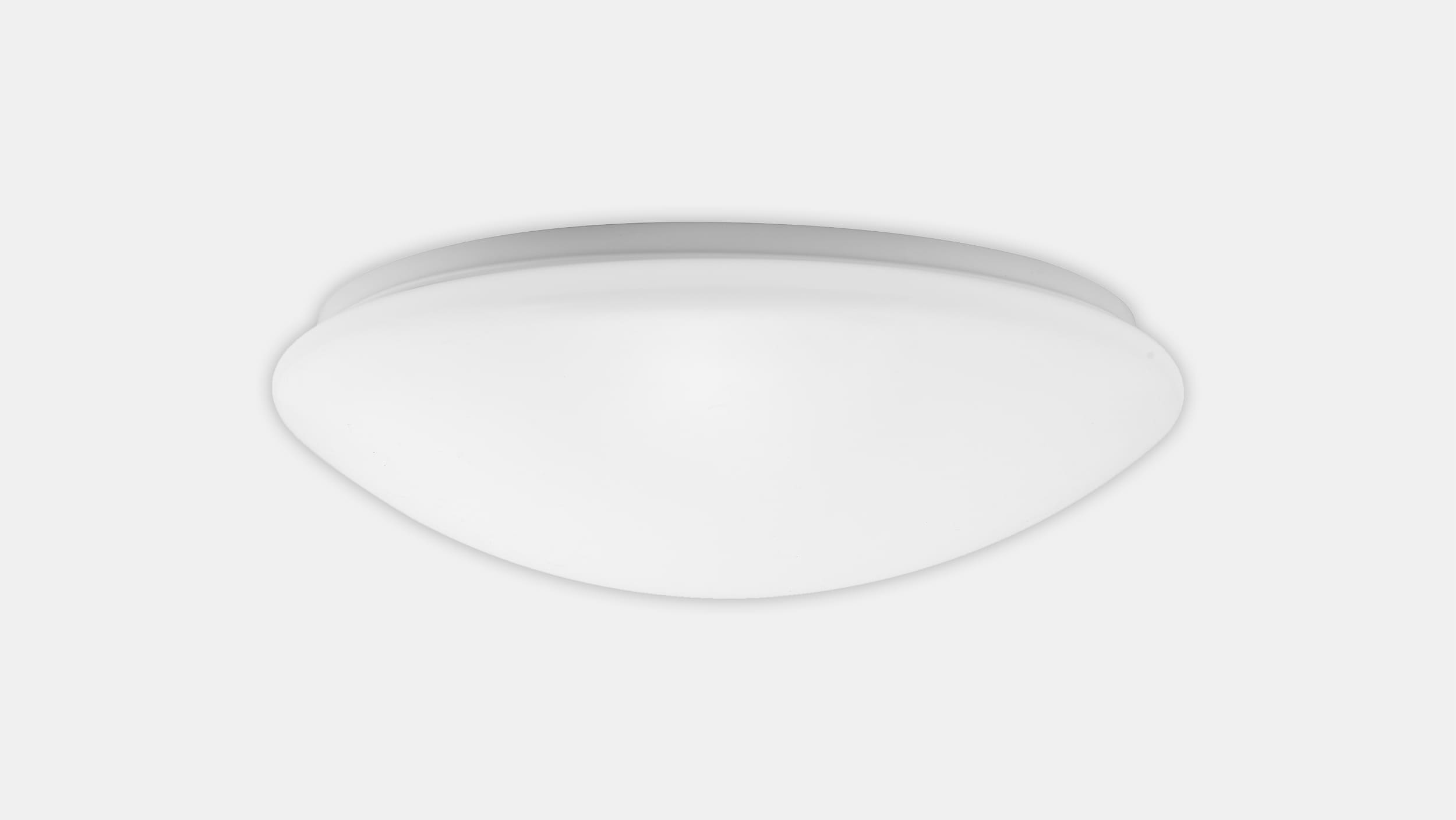

  • Luminaire with motion sensor ∅36cm

    Luminaire with motion sensor ∅36cm

  • Luminaire with motion sensor ∅41cm

    Luminaire with motion sensor ∅41cm

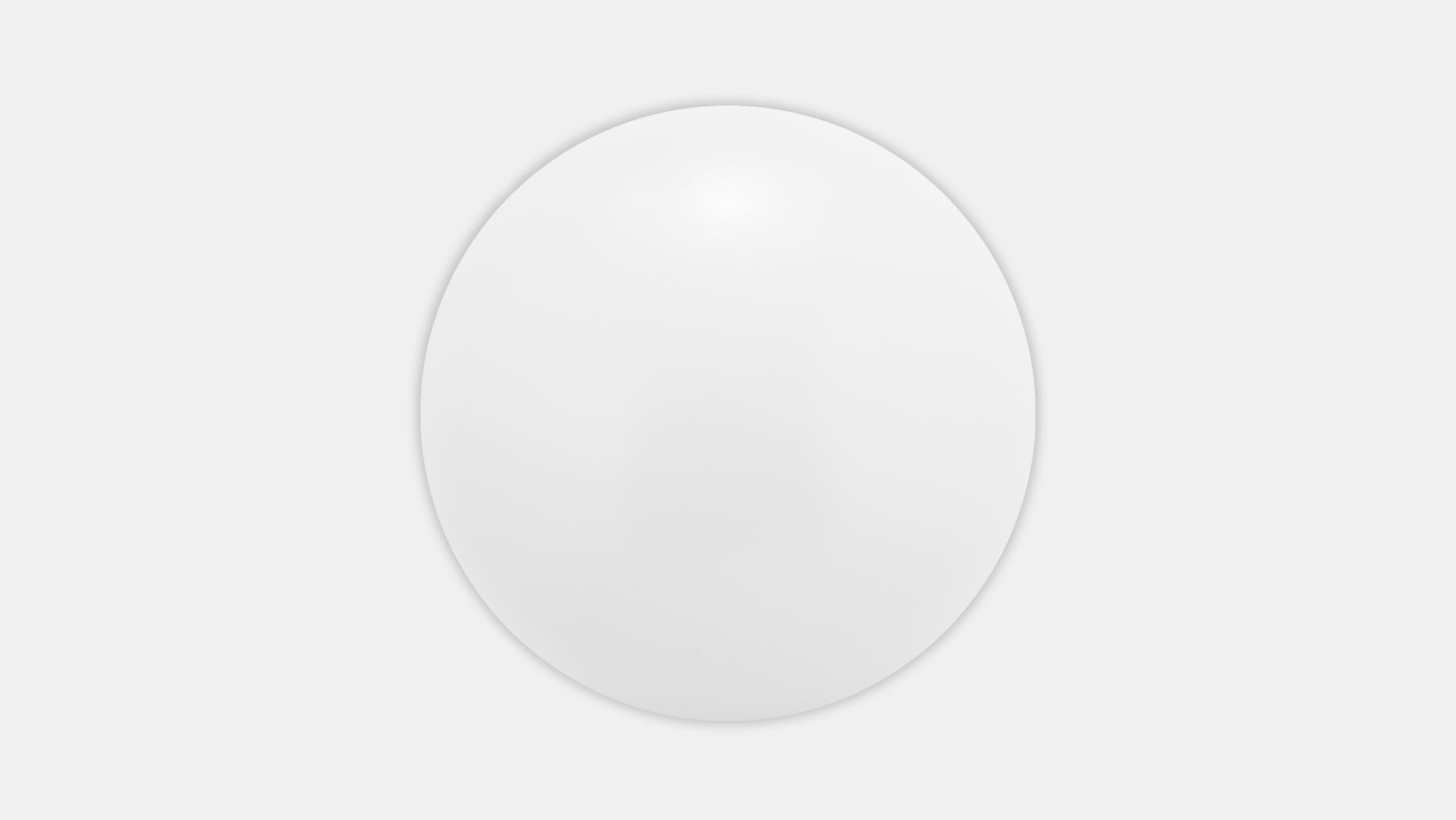

  • Luminaire - Front view

    Luminaire - Front view

Reference Version Power Lumens Efficacy Working voltage Beam angle CCT CRI IP
SLI12CCS ∅28mm 12W 1000 83lm/W 220-240v AC 120º 6000-4000-3000K >80 44
SLI18CCS ∅36mm 18W 1400 78lm/W 220-240v AC 120º 6000-4000-3000K >80 44
SLI22CCS ∅41mm 22W 2000 91lm/W 220-240v AC 120º 6000-4000-3000K >80 44
  • Description
  • This surface luminaire with IP44 and motion sensor it is perfect for corridors, stairs and emergency exits.

  • Motion sensor turns the light on only if movement is detected.

  • Optional emergency function keeps the luminaire working until 3 hours without electrical supply.


  • Features
  • LED type: BMTC MTRA2837

  • Lifespan (L70B10): >113000 hours

  • Power factor: >0,9

  • Working temperature: -20º∼+40ºC

  • Certificates: CE

  • Class D lightsource

  • Guarantee: 3 years

Reference Spec sheet Manual IES File LDT File
SLI12CCS
SLI18CCS
SLI22CCS
  • Rooms

  • Corridors

  • Hallways

  • Entrances

  • Stairs

  • Emergency exits

Detection area 100% | 50%
Time setting 5s | 1min | 3min | 10min
Daylight sensor 25lux -| Disable
