  • Premium Flood-light 50W-300W

  • Premium Flood-light 50W

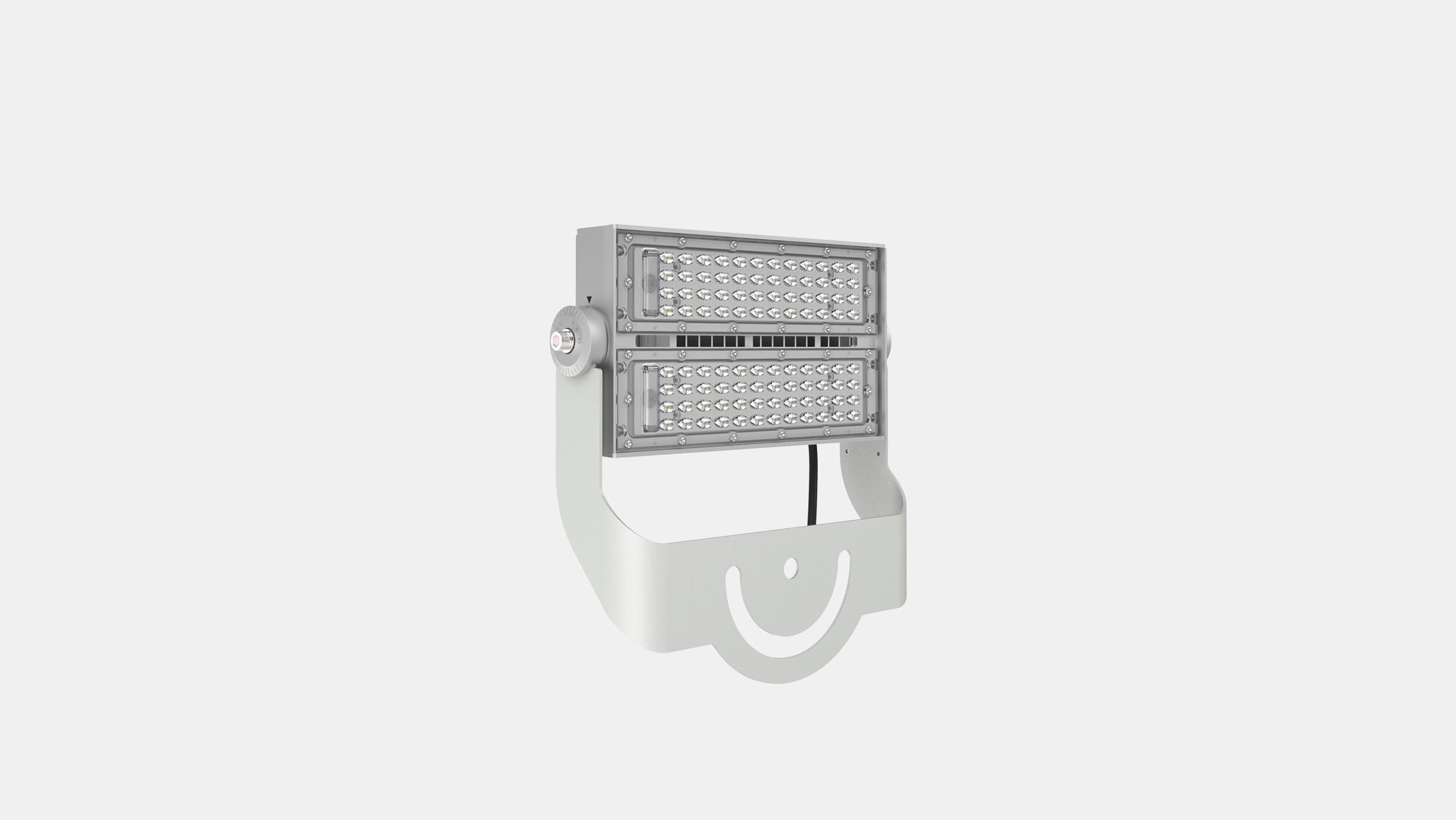

    Premium Flood-light 50W

  • Premium Flood-light 100W

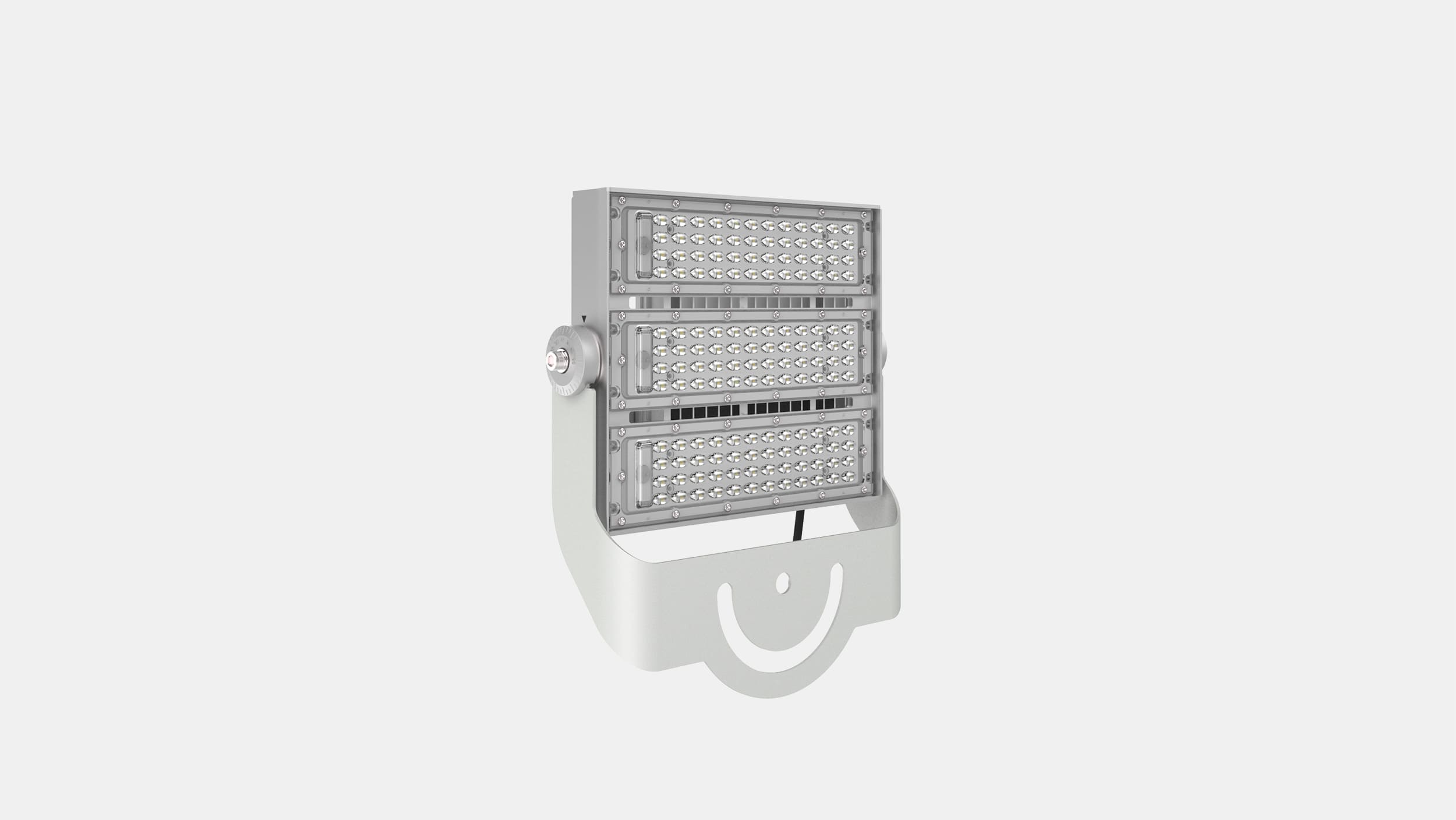

    Premium Flood-light 100W

  • Premium Flood-light 150W

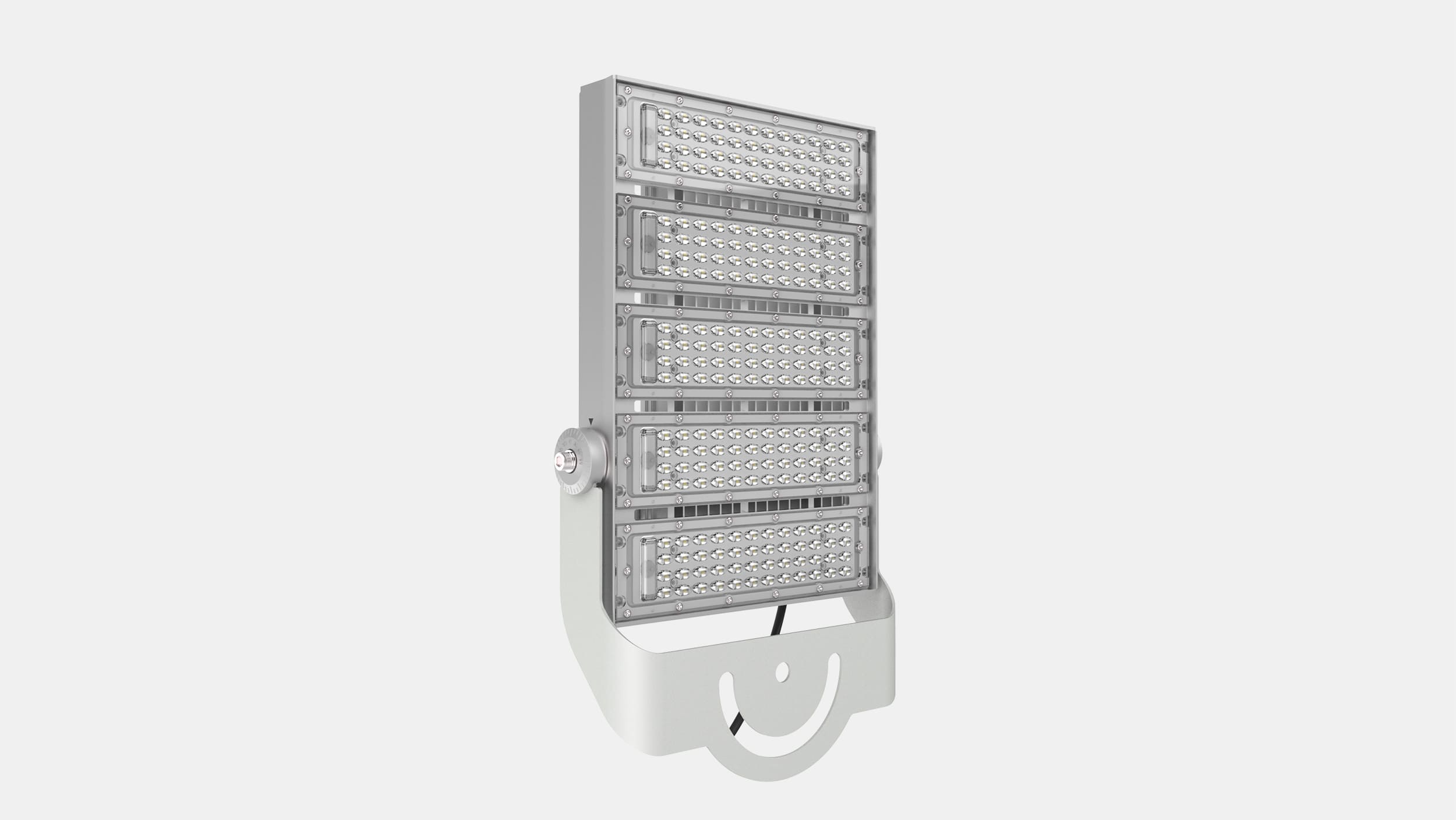

    Premium Flood-light 150W

  • Premium Flood-light 200W/300W

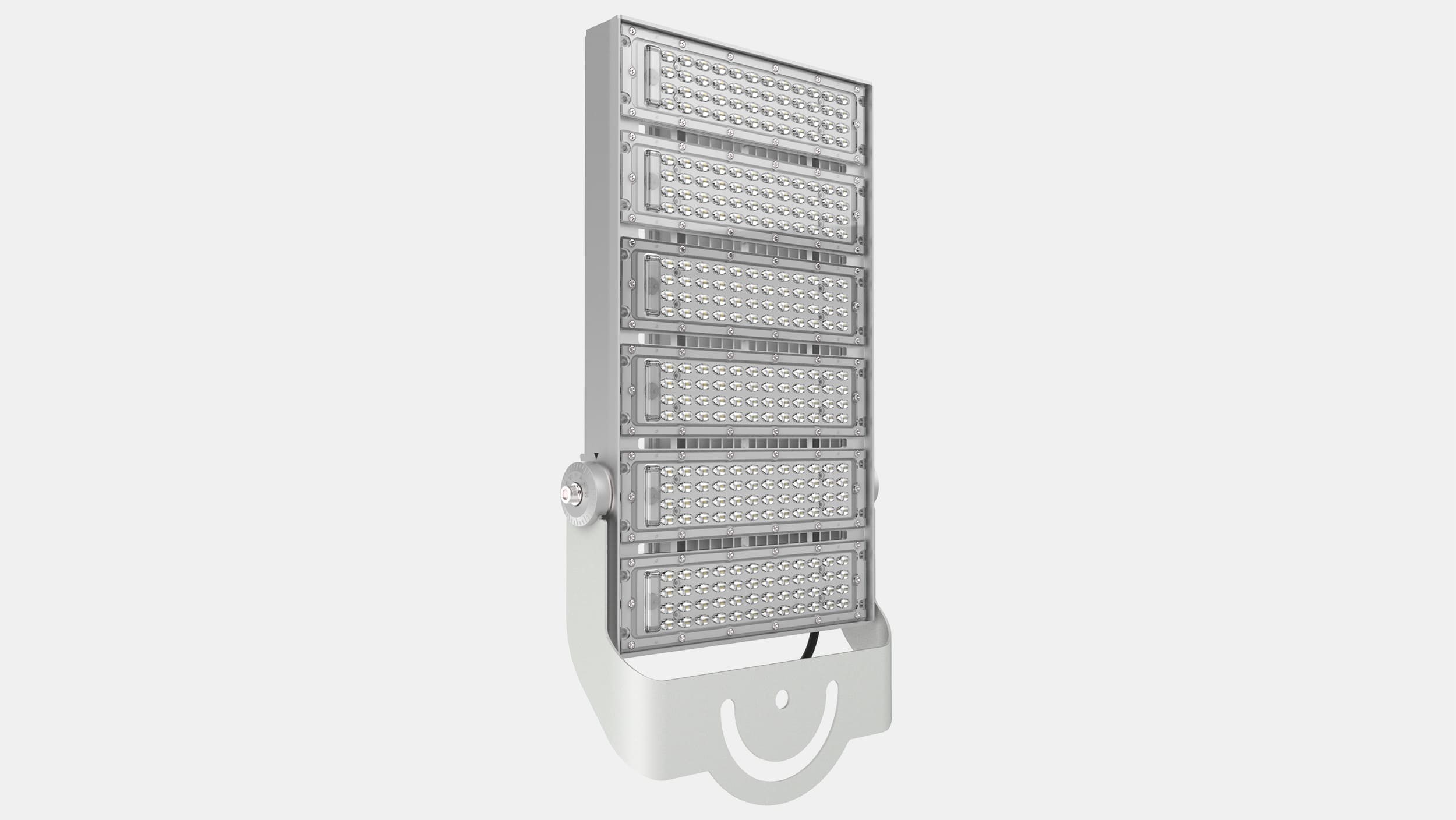

    Premium Flood-light 200W/300W

  • Recommendations for installation on padel and tennis courts

    Recommendations for installation on padel and tennis courts

Reference Version Connection Power Lumens Efficacy Working voltage Beam angle CCT IP
FLS50xWD 2 LED modules L-N-PE 50W 7000 140lm/W 100-277v AC 60º/90º 5000K - 4000K 65
FLS100xWD 3 LED modules L-N-PE 100W 14000 140lm/W 100-277v AC 60º/90º 5000K - 4000K 65
FLS150xWD 5 LED modules L-N-PE 150W 21000 140lm/W 100-277v AC 60º/90º 5000K - 4000K 65
FLS200xWD 6 LED modules L-N-PE 200W 27000 135lm/W 100-277v AC 60º/90º 5000K - 4000K 65
FLS300xWD 6 LED modules L-N-PE 300W 37000 123lm/W 100-277v AC 60º/90º 5000K - 4000K 65
  • Description
  • Special range for sport facilities, mainly for tennis and padel courts, football stadiums and golf courses.

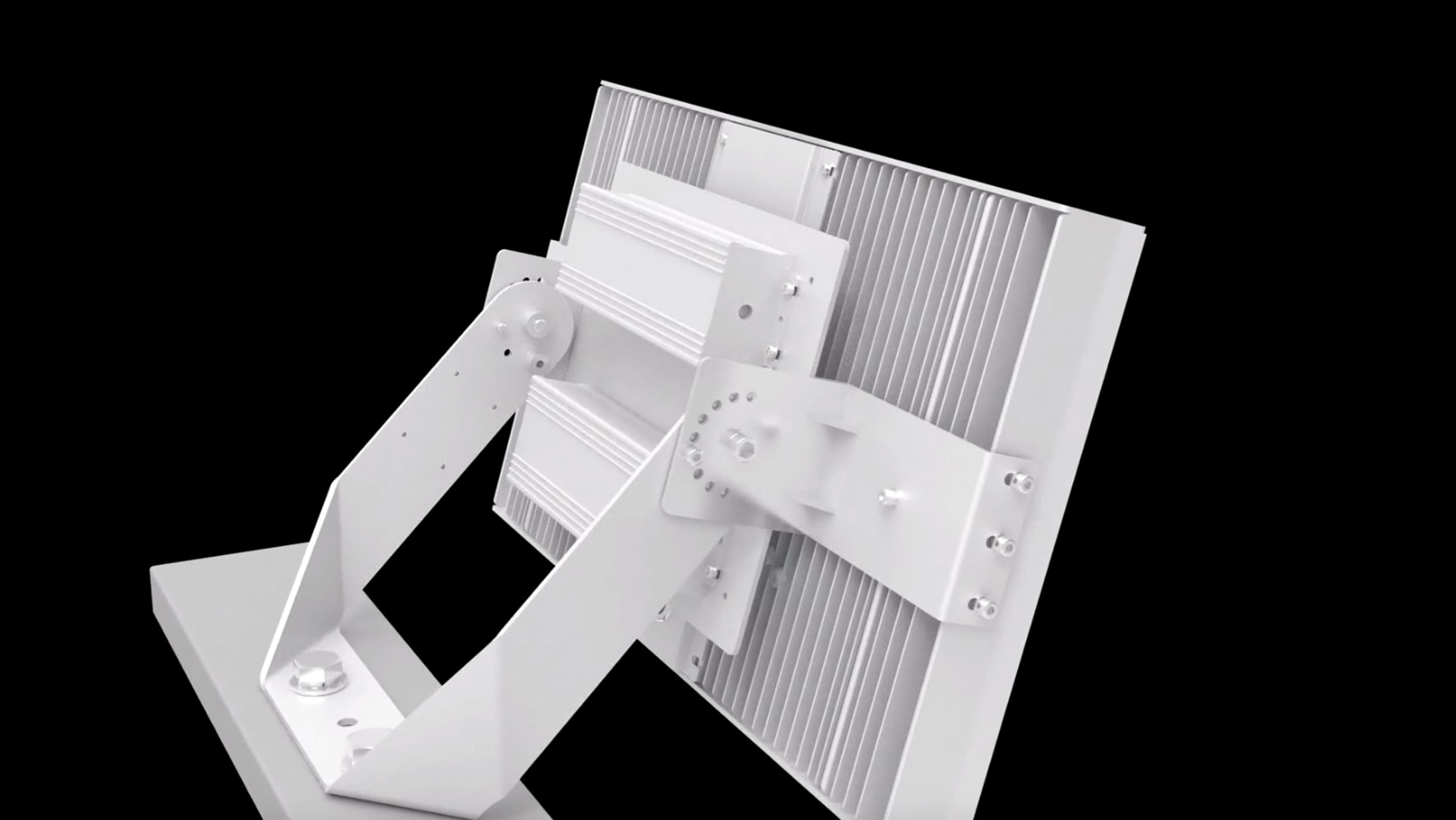

  • Sandblasting anodized heat sink and cold-rolled steel bracket with powder spraying process used on the surface, 3mm thick.

  • Maximum resistance IK10 to avoid damages due to ball impacts.Up to 130 lumen per Watt -ultra high light efficiency.

  • Anti-corrosion coating surface and IP65 protection rate.

  • Reliable and high efficiency Inventronic driver.


  • Features
  • LED type: NICHIA NF2W757GRT

  • Lifespan (L70B10): >250000 hours

  • Colour Rendering Index (CRI): >75

  • Power factor: >0,9

  • IK protection rate: 10

  • Working temperature: -40º∼+55ºC

  • Optional: DALI power supply

  • Certificates: CE, DLC, ETL

  • Class D lightsource

  • Guarantee: 5 years

Reference Spec sheet Manual IES File LDT File
FLS50CWD
FLS50NWD
FLS100CWD
FLS100NWD
FLS150CWD
FLS150NWD
FLS200CWD
FLS200NWD
FLS300CWD
FLS300NWD
  • Tennis courts

  • Padel courts

  • Sport centers
