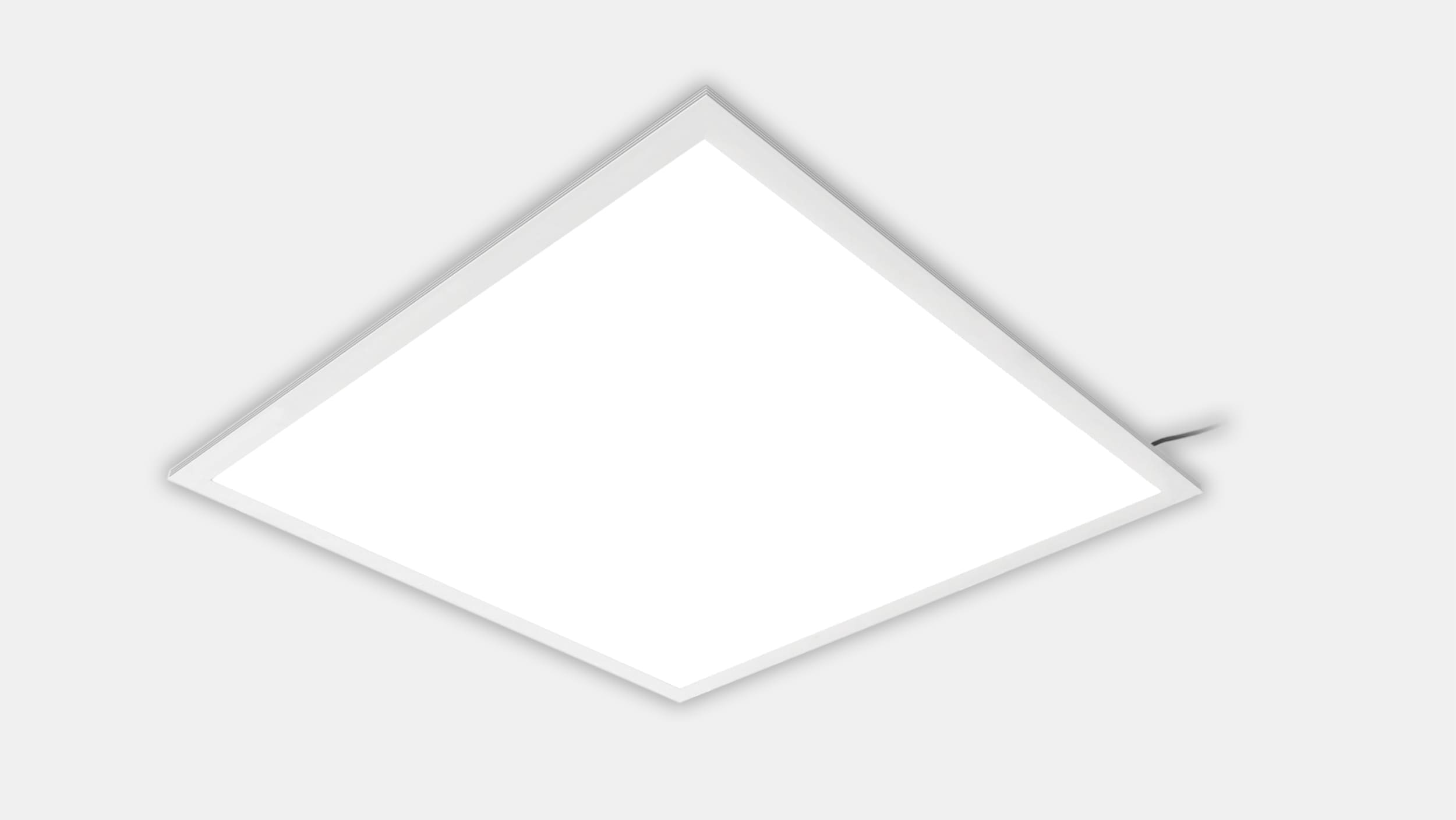

  • Standard Panel 60x60cm

    Standard Panel 60x60cm

  • Accessory: Surface frame

    Accessory: Surface frame

  • Accessory: Drywall ceiling frame

    Accessory: Drywall ceiling frame

  • Accessory: Suspension kit max.150cm

    Accessory: Suspension kit max.150cm

Reference Version Dimming Power Lumens Efficacy Working voltage Beam angle CCT IP
PND35CC60U 60x60cm Optional 1-10V and DALI   35W 3600 103lm/W 220-240v AC 95º 3000K-4000K-5400K 20
PND35CC62U 62x62cm Optional 1-10V and DALI   35W 3600 103lm/W 220-240v AC 95º 3000K-4000K-5400K 20
PND35CC123U 120x30cm Optional 1-10V and DALI   35W 3600 103lm/W 220-240v AC 95º 3000K-4000K-5400K 20
  • Description
  • Innovative and slim shape that delivers a uniform surface of light, creating modern and trendy environments.

  • With a very simple installation, panels can be used to replace functional luminaires in general lighting applications.

  • Optional UGR<19 diffuser under request, according to new European standard for office buildings.

  • Optional DALI driver under request.

  • Several mounting options.


  • Features
  • LED type: RUNLITE 4014

  • Lifespan (L70B10): 62000 hours

  • Colour Rendering Index (CRI): >80

  • UGR index: <19

  • Power factor: >0,9

  • IP protection rate: 20

  • Working temperature: -20º∼+40ºC

  • Certificates: CE

  • Class D lightsource

  • Guarantee: 5 years

Reference Spec sheet Manual IES File LDT File
PND35CC60U
PND35CC62U
PND35CC123U
  • Offices

  • Classrooms

  • Stores

  • Locker rooms

Reference Finish Material Luminaire application Size (LxWxH)
PNFSUR60 White Lacquered sheet steel Panel 60x60cm 600x600x50mm
  • Frame for surface installation in a non-technical ceiling.

Reference Spec sheet
PNFSUR60
Reference Finish Material Luminaire application Size (LxWxH)
PNFRAMEDWALL White Lacquered sheet steel Panel 60x60cm 620x620x20mm
  • Frame with tabs for recessed installation in a non-technical ceiling.

Reference Spec sheet
PNFRAMEDWALL
