  • Retrofit Line Light - Compatible with most trunking rails on the lighting market

    Retrofit Line Light - Compatible with most trunking rails on the lighting market

  • Retrofit Line Light - Compatible with most trunking rails on the lighting market

    Retrofit Line Light - Compatible with most trunking rails on the lighting market

  • Intensity DIP-switch with four options between 100% and 60%

    Intensity DIP-switch with four options between 100% and 60%

  • Easy one-click mounting system

    Easy one-click mounting system

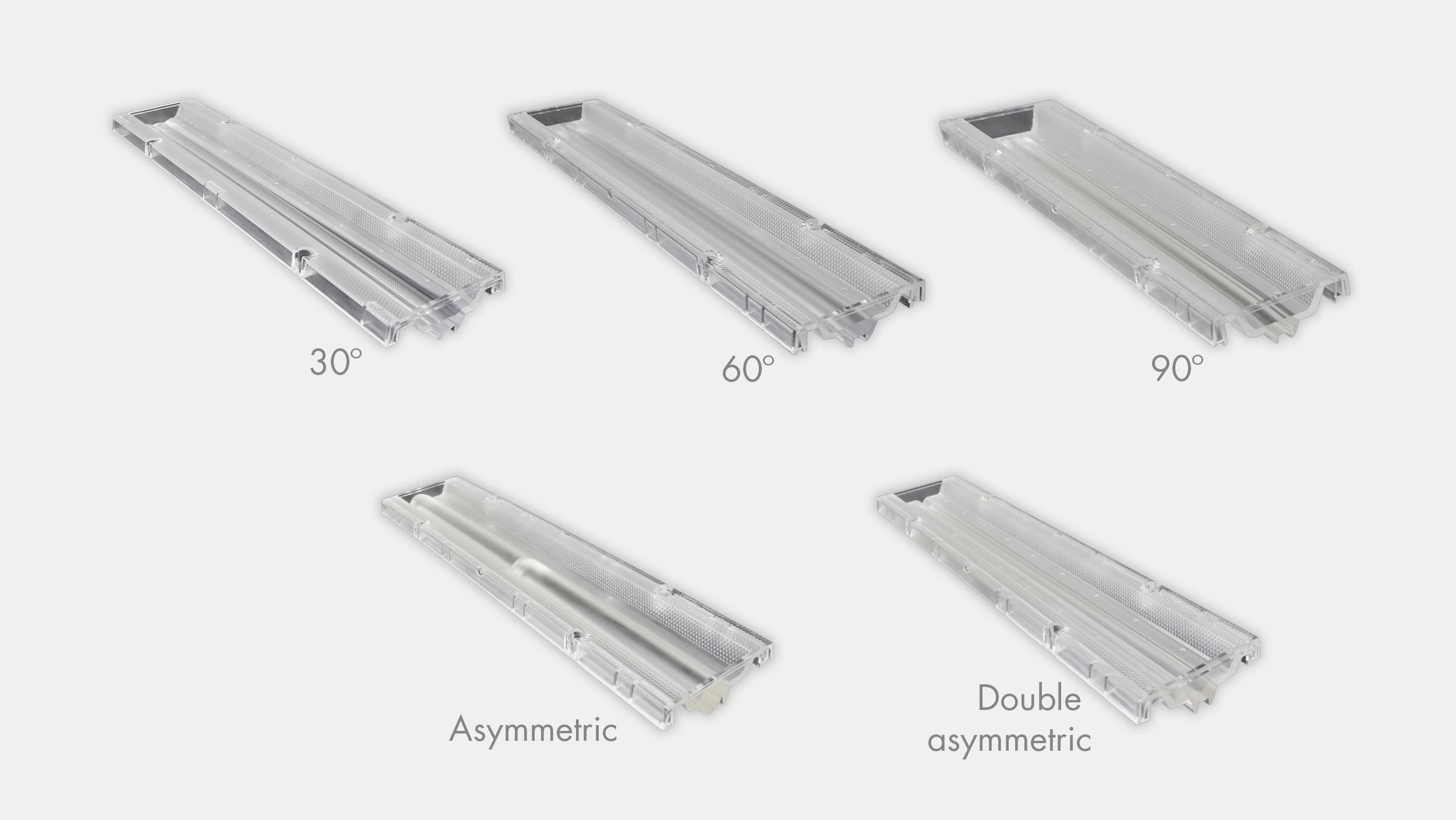

  • Lenses with 5 different beam angles

    Lenses with 5 different beam angles

Reference Version Connection Power Lumens Efficacy Dimming Working voltage CCT
LLRD70CWS Beam angle 30º L-N (up to 25 uts) Changeable: 70 | 60 | 50 | 40W 9900 | 8700 | 7500 | 6100lm 141 | 124 | 107 | 87lm/W - 220-240v AC 5000K
LLRD70NWS Beam angle 30º L-N (up to 25 uts) Changeable: 70 | 60 | 50 | 40W 9900 | 8700 | 7500 | 6100lm 141 | 124 | 107 | 87lm/W - 220-240v AC 4000K
LLRD70CWN Beam angle 60º L-N (up to 25 uts) Changeable: 70 | 60 | 50 | 40W 9900 | 8700 | 7500 | 6100lm 141 | 124 | 107 | 87lm/W - 220-240v AC 5000K
LLRD70NWN Beam angle 60º L-N (up to 25 uts) Changeable: 70 | 60 | 50 | 40W 9900 | 8700 | 7500 | 6100lm 141 | 124 | 107 | 87lm/W - 220-240v AC 4000K
LLRD70CWW Beam angle 90º L-N (up to 25 uts) Changeable: 70 | 60 | 50 | 40W 9900 | 8700 | 7500 | 6100lm 141 | 124 | 107 | 87lm/W - 220-240v AC 5000K
LLRD70NWW Beam angle 90º L-N (up to 25 uts) Changeable: 70 | 60 | 50 | 40W 9900 | 8700 | 7500 | 6100lm 141 | 124 | 107 | 87lm/W - 220-240v AC 4000K
LLRD70CWA Beam angle asymmetric L-N (up to 25 uts) Changeable: 70 | 60 | 50 | 40W 9900 | 8700 | 7500 | 6100lm 141 | 124 | 107 | 87lm/W - 220-240v AC 5000K
LLRD70NWA Beam angle asymmetric L-N (up to 25 uts) Changeable: 70 | 60 | 50 | 40W 9900 | 8700 | 7500 | 6100lm 141 | 124 | 107 | 87lm/W - 220-240v AC 4000K
LLRD70CW2A Beam angle double asymm. L-N (up to 25 uts) Changeable: 70 | 60 | 50 | 40W 9900 | 8700 | 7500 | 6100lm 141 | 124 | 107 | 87lm/W - 220-240v AC 5000K
LLRD70NW2A Beam angle double asymm. L-N (up to 25 uts) Changeable: 70 | 60 | 50 | 40W 9900 | 8700 | 7500 | 6100lm 141 | 124 | 107 | 87lm/W - 220-240v AC 4000K
  • Description
  • Developed to replace the old lines of luminaires with tubes, the Retrofit Line Light is compatible with most existing rails in the market.

  • Very easy installation: choose the desired lumen output, connect the luminaire and fit it into the rail.

  • Luminous flux DIP-switch allows to select the lumen output between 100% and 60%.

  • Lenses with 5 different beam angles.


  • Features
  • LED type: SAMSUNG SPMWH12228

  • Lifespan (L70B10): >189000 hours

  • Colour Rendering Index (CRI): >80

  • Power factor: >0,9

  • IP protection rate: 20

  • Working temperature: -25º∼+35ºC

  • Certificates: CE

  • Class C lightsource

  • Guarantee: 5 years

Reference Spec sheet Manual IES File LDT File
LLRD70CWS
LLRD70NWS
LLRD70CWN
LLRD70NWN
LLRD70CWW
LLRD70NWW
LLRD70CWA
LLRD70NWA
LLRD70CW2A
LLRD70NW2A
  • Existing rails with T5 or T8 tubes

  • Large commercial areas

  • Warehouses

  • Offices

  • Locker rooms

Check our compatibility list here.
Reference Description Spec sheet
LLD30L Lens for 30º luminaire
LLD60L Lens for 60º luminaire
LLD90L Lens for 90º luminaire
LLDAL Lens for asymmetric luminaire
LLD2AL Lens for double asymmetric luminaire
