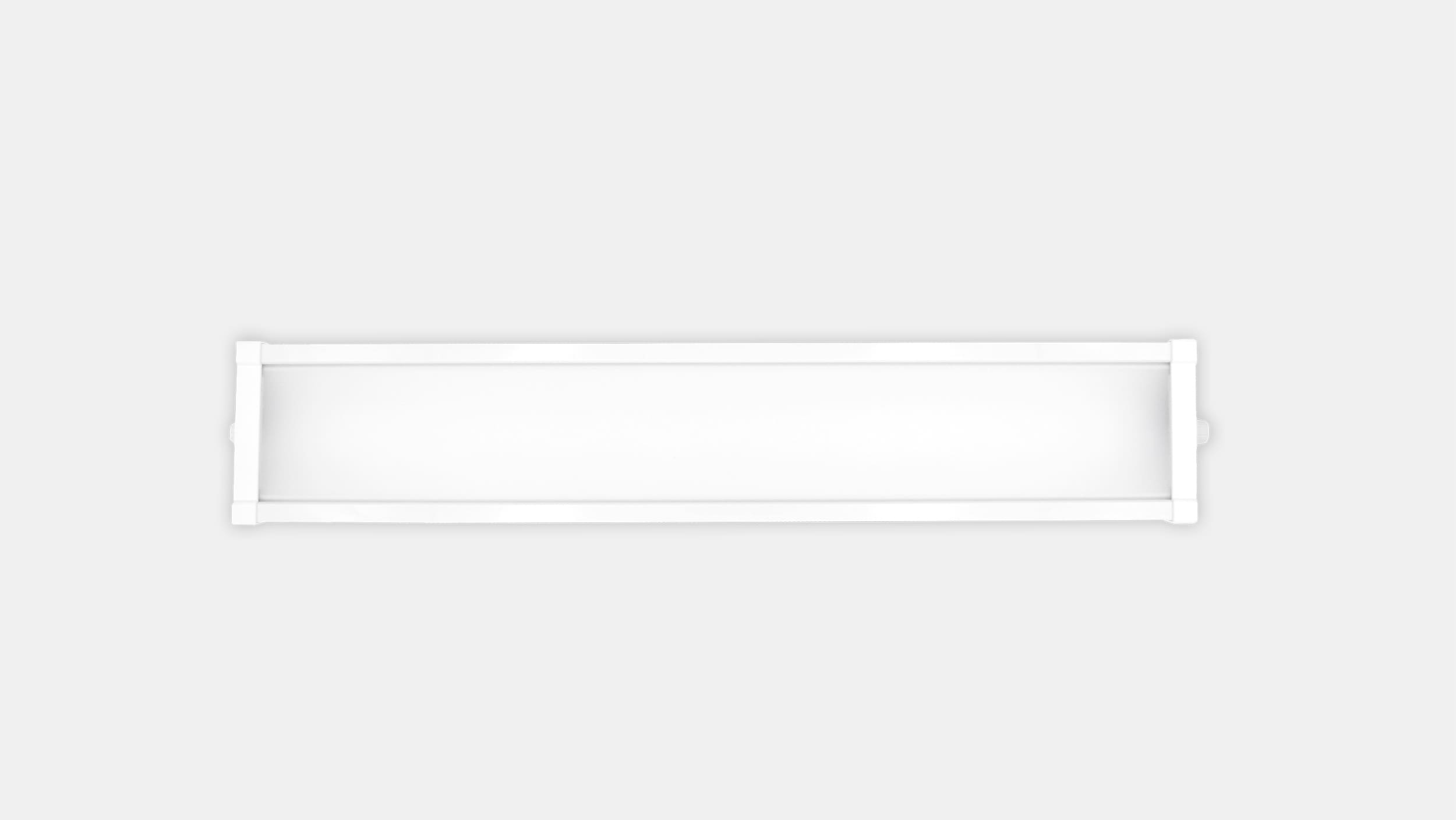

  • Standard Integral fixture 60cm

    Standard Integral fixture 60cm

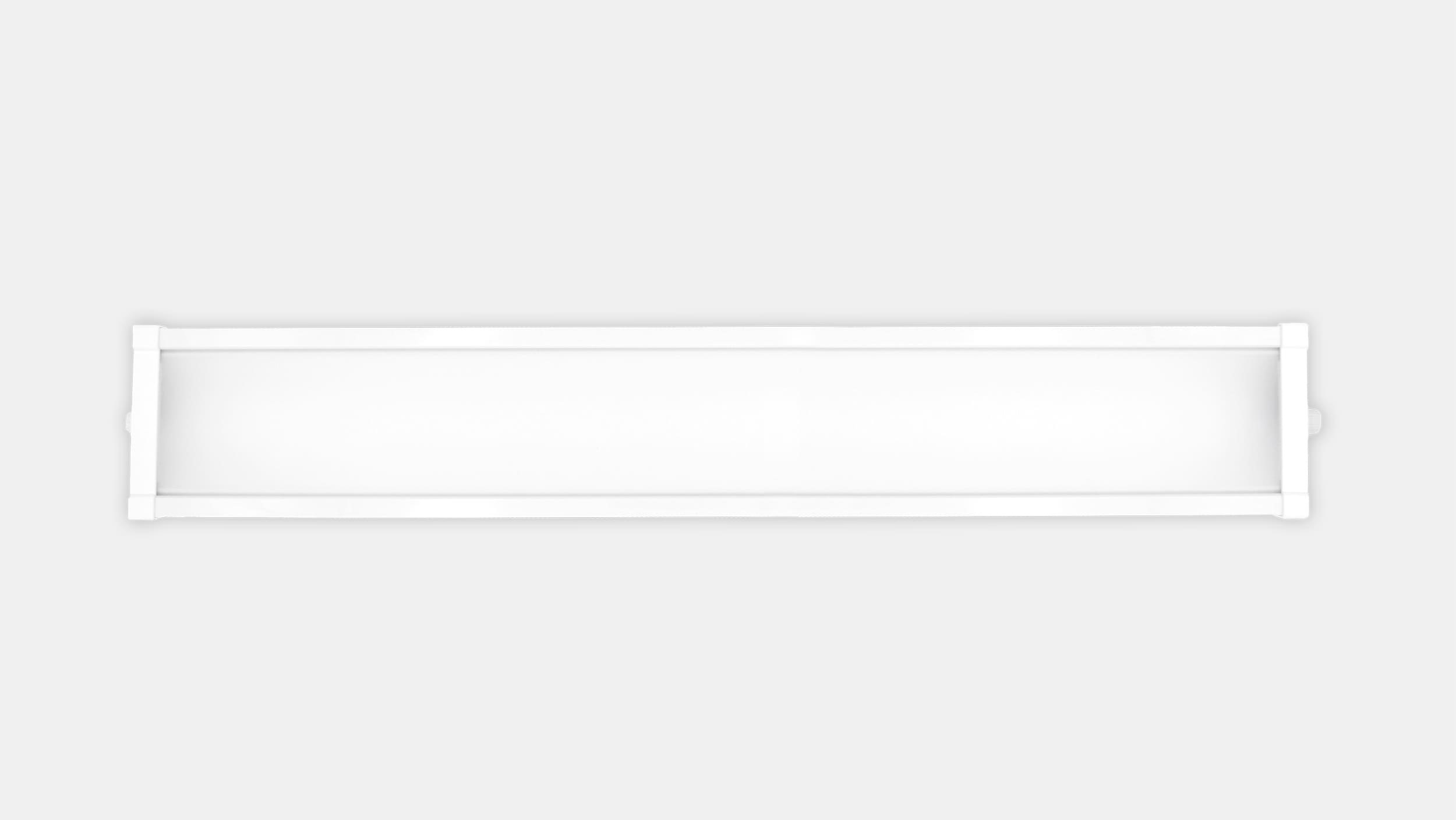

  • Standard Integral fixture 120cm

    Standard Integral fixture 120cm

  • Standard Integral fixture 150cm

    Standard Integral fixture 150cm

  • Integral fixture mounting clips

    Integral fixture mounting clips

  • Interconnection cable

    Interconnection cable

Reference Version Connection Power Lumens Efficacy Working voltage Beam angle CCT IP
FX615CW2 64cm L-N (up to 10 units) 15W 2100 140lm/W 85-265v AC 100º 5000K 65
FX615NW2 64cm L-N (up to 10 units) 15W 2100 140lm/W 85-265v AC 100º 4000K 65
FX615WW2 64cm L-N (up to 10 units) 15W 2100 140lm/W 85-265v AC 100º 3000K 65
FX230CW2 120cm L-N (up to 10 units) 30W 4200 140lm/W 85-265v AC 100º 5000K 65
FX230NW2 120cm L-N (up to 10 units) 30W 4200 140lm/W 85-265v AC 100º 4000K 65
FX230WW2 120cm L-N (up to 10 units) 30W 4200 140lm/W 85-265v AC 100º 3000K 65
FX540CW2 150cm L-N (up to 10 units) 40W 5600 140lm/W 85-265v AC 100º 5000K 65
FX540NW2 150cm L-N (up to 10 units) 40W 5600 140lm/W 85-265v AC 100º 4000K 65
FX540WW2 150cm L-N (up to 10 units) 40W 5600 140lm/W 85-265v AC 100º 3000K 65
FX550CW2 150cm L-N (up to 10 units) 50W 7200 144lm/W 85-265v AC 100º 5000K 65
FX550NW2 150cm L-N (up to 10 units) 50W 7200 144lm/W 85-265v AC 100º 4000K 65
FX550WW2 150cm L-N (up to 10 units) 50W 7200 144lm/W 85-265v AC 100º 3000K 65
  • Description
  • Integral fixture means waterproof, dustproof, corrosionproof and vapourproof made by latest LED technology and high density PVC body.

  • High energy efficiency light source and constant current output design greatly improve the lifespan.

  • The internal light uses anti-seismic materials to keep work in various high frequency.

  • It is possible to connect up to 10 luminaires in one line. Connection cable is suplied with the luminaire.

  • The integral fixture is supplied with a clamping kit consistent of 2 clips, screws and plugs for installation, plus two additional cables to connect them to each other.


  • Features
  • LED type: HONGLITRONIC 2835

  • Lifespan (L70B10): 67000 hours

  • Colour Rendering Index (CRI): >80

  • Power factor: >0,9

  • IK protection rate: 08

  • Working temperature: -20º∼+45ºC

  • Certificates: CE, SAA

  • Class E lightsource

  • Guarantee: 5 years

Reference Spec sheet Manual IES File LDT File
FX615CW2
FX615NW2
FX615WW2
FX230CW2
FX230NW2
FX230WW2
FX540CW2
FX540NW2
FX540WW2
FX550CW2
FX550NW2
FX550WW2
  • Warehouses

  • Factories

  • Supermarkets

  • Sport centers

  • Parking lots

  • Car workshops
